AT-CM-040 with A4 A8 90000rpm Other Dental Equipments, Dental Drill & Accessories, Other Medical Consumables
$570.49
Guaranteed Safe Checkout
Features & Compatibility
Product Description

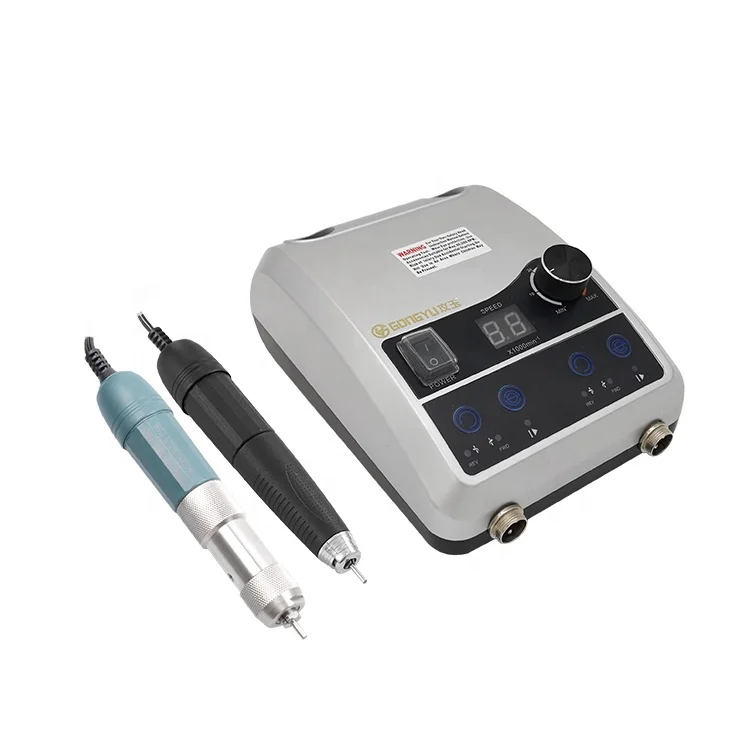

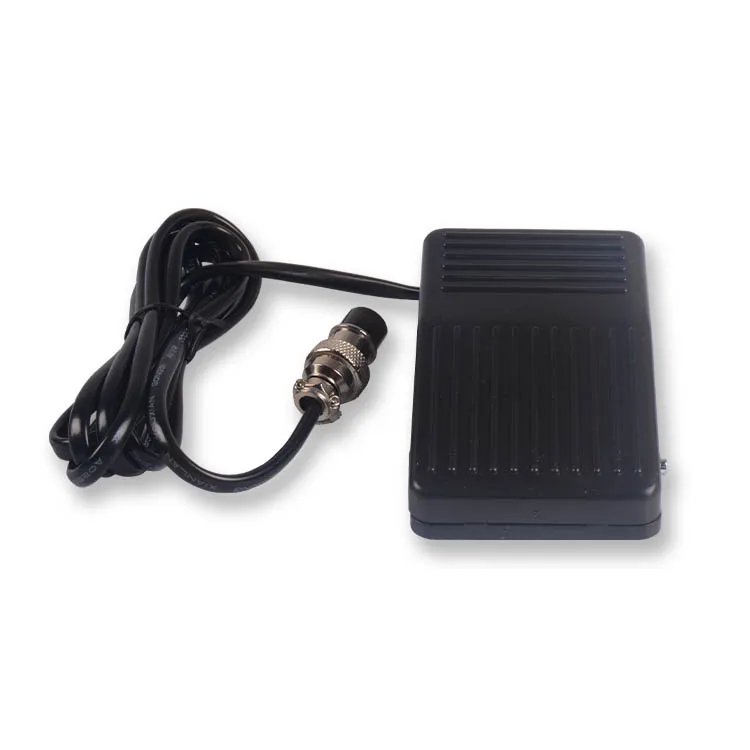

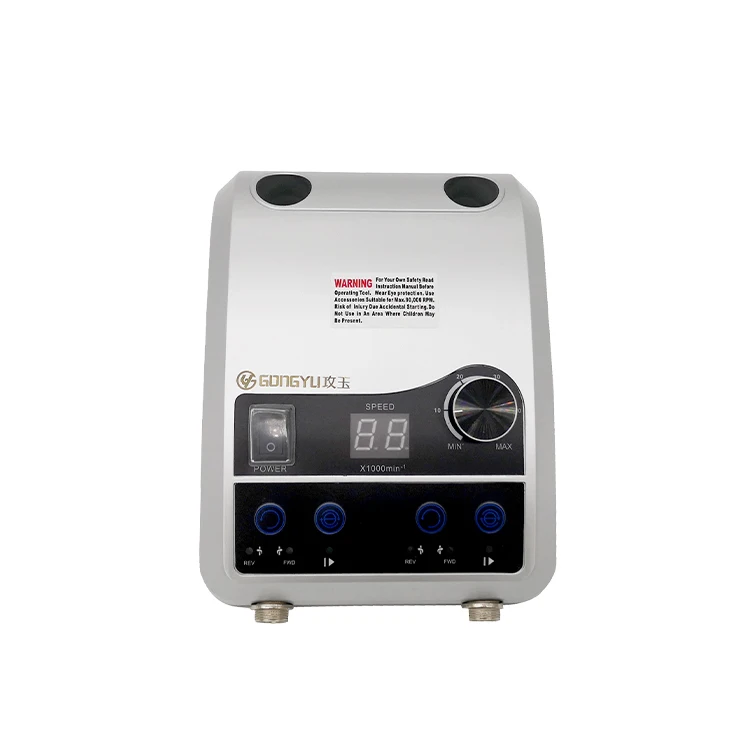

AT-CM-040 power supply only AT-A4 12n.cm handpiece AT-A8 90000/60000 handpiece Foot on/off pedal
|
Production name
|
90000rpm Other Dental Equipments, Dental Drill & Accessories, Other Medical Consumables
|
|
Input for the carving machine
|
110V USA plug / 220V EU plug (50/60HZ) / OEM acceptable
|
|
Output
|
36V/ OEM acceptable(standard 36V for Carving machine)
|
|
Abrasive accessories for the handheld carving machine
|
2.35mm /3mm/ 3.175mm (A4 handpiece also have 6mm chuck size)
|
|
Type
|
brushless carving machine, price in this link contain handpiece, A4 and A8 handpiece
|
|
Carving machine standard packing
|
inner box packing, then packing in carton; inner box have English not brand standard packing, or can OEM your brand OK
|
|
Item number
|
AT-CM-040 with A4 A8 handheld polishing machine
|
|
Sample time
|
3-15days
|
|
Mass production time
|
3-15days (OEM style need check with the design, estimate 10-30days)
|
|
Payment method
90000rp Other Dental Equipments, Dental Drill & Accessories, Other Medical Consumables |
Paypal 5% bank fee; TT 50USD bak fee per payment; alibaba insurance contract 2.5% bank fee; Western Union no bank fee you can select the payment method you prefer
|
|

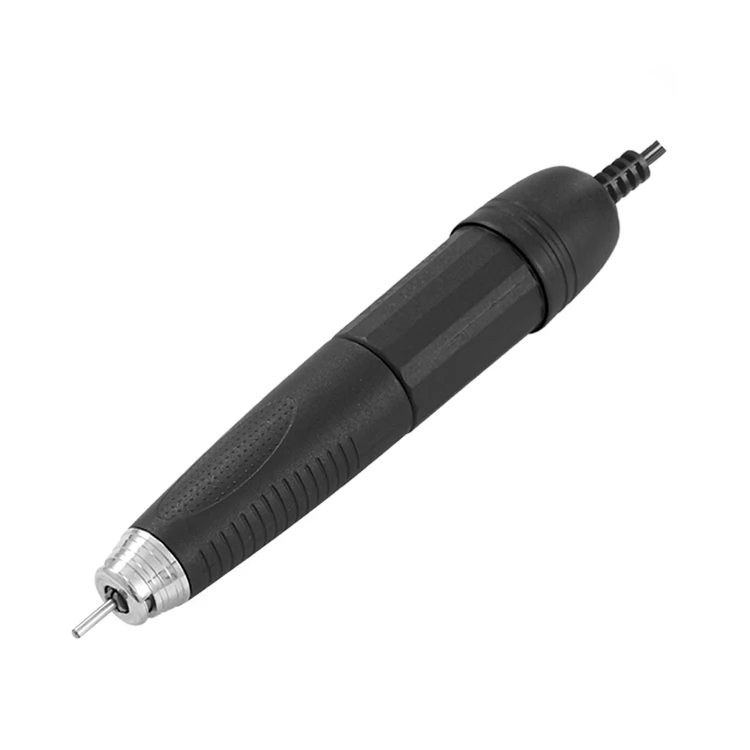

AT-A4 handpiece type
|
Brushless micro motor handpiece
|
||||||
|
Max Torque
|
10N.CM/ 3.5N.CM / 8N.CM /
12N.CM / OEM acceptable |
||||||
|
Rotating speed
|
MAX 35,000RPM
/50000RPM/ 60000RPM/90000RPM/OEM acceptable |
||||||
|
Bearing
|
Special locator style, The strongest force,Play for embryo
|
||||||
|

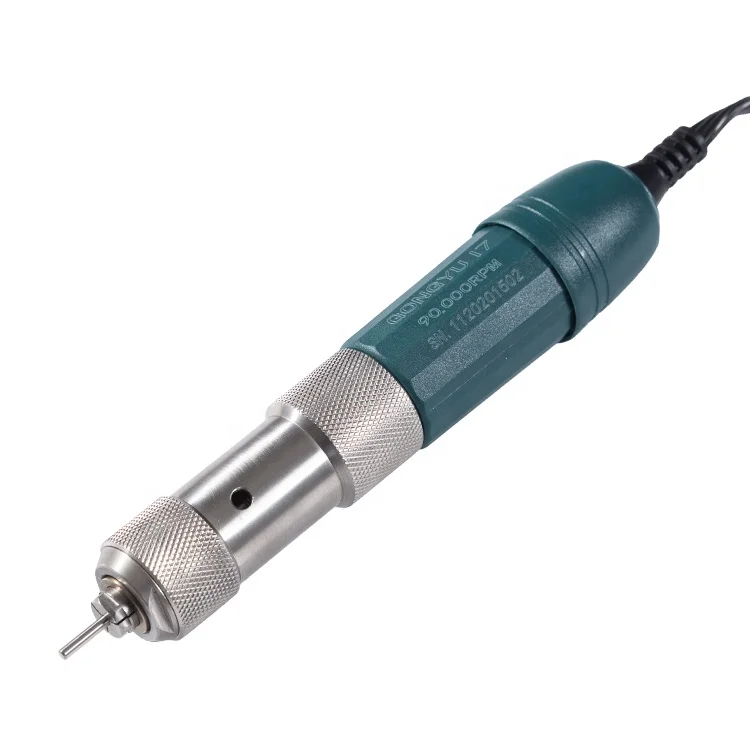

AT-A8 handpiece type
|
Brushless micro motor handpiece
|
||||||
|
Max Torque
|
10N.CM/ 3.5N.CM / 8N.CM / 12N.CM / OEM acceptable
|
||||||
|
Rotating speed
|
MAX 35,000RPM /50000RPM
/ 90000RPM/ 60000RPM/OEM acceptable |
||||||
|
Bearing
|
103 double locator
|
||||||
1.This product is developed for dental technicians. It can also be used in jewelry processing, nail art, polishing, handicraft carving, mold processing, electronics and other industries.
Thank you for purchasing our products, Maintain properly and replace the products parts timely can extend the service life of the product.
In order to improve and upgrade the products, may adjust products’ appearance and configuration without notice.
2. Product warranty
Handle warranty for 6 months, excluding wearing parts. Such as three-lobe spring (chuck), shaft core, small shaft core, bearing; the control box and pedal are guaranteed for one year.
4. Maintenance advice
4.1) please keeps clean and dry around the rotation of the handle
4.2) when there is dust and dirt inside or outside the handle, please wipe it with a little alcohol, but avoid a large amount of alcohol or moisture penetrating into the bearing. The inside of the handle cannot be fill with oil (the bearing will become too hot to use), nor the water (the bearing will rust and damage)
4.3) you can use an air gun to clean it, but pay attention to the gas from the air gun may contain moisture. Be sure to avoid water vapor blowing into the bearing to prevent rust.
In order to improve and upgrade the products, may adjust products’ appearance and configuration without notice.
2. Product warranty
Handle warranty for 6 months, excluding wearing parts. Such as three-lobe spring (chuck), shaft core, small shaft core, bearing; the control box and pedal are guaranteed for one year.
4. Maintenance advice
4.1) please keeps clean and dry around the rotation of the handle
4.2) when there is dust and dirt inside or outside the handle, please wipe it with a little alcohol, but avoid a large amount of alcohol or moisture penetrating into the bearing. The inside of the handle cannot be fill with oil (the bearing will become too hot to use), nor the water (the bearing will rust and damage)
4.3) you can use an air gun to clean it, but pay attention to the gas from the air gun may contain moisture. Be sure to avoid water vapor blowing into the bearing to prevent rust.
Production Process
More Products
Additional information
| color |
AT-CM-040&A4&A8 drill machine 2.35mm ,AT-CM-040&A4&A8 drill machine 3.175mm ,AT-CM-040&A4&A8 drill machine 3mm ,AT-CM-040&A4&A8 drill machine(confirm with sales) |
|---|---|
| specification |
220V UK Plug ,110V USA Plug ,220V EU Plug ,Confirm with sales ,220V AU Plug |
| voltage |
110V/220V |
