Beacon Machine CR708 laboratory equipment eps708 common rail injector coding HEUI EUI EUP pump eps 708 test bench CR815

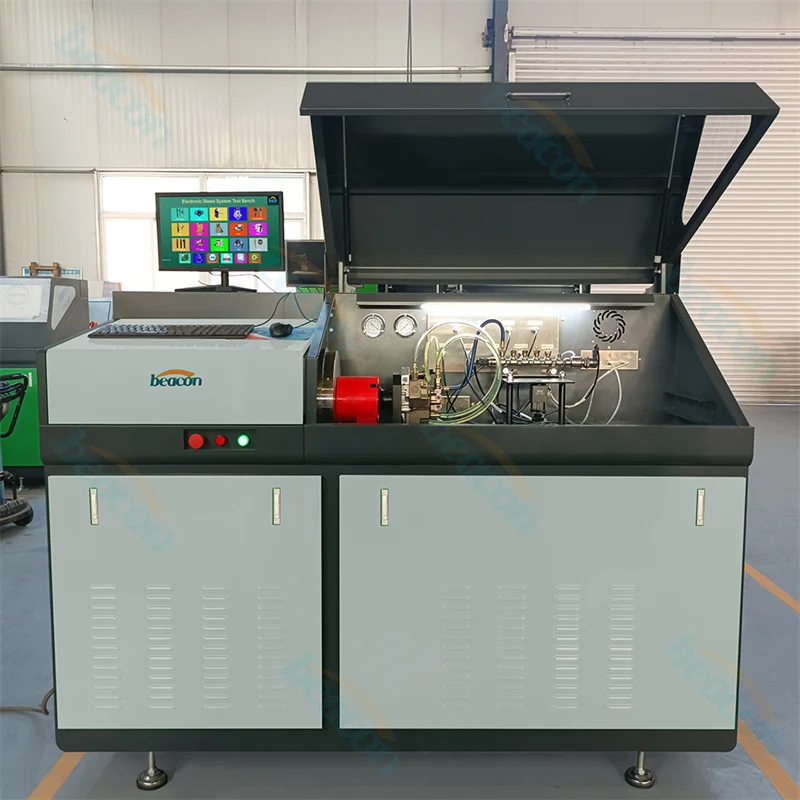

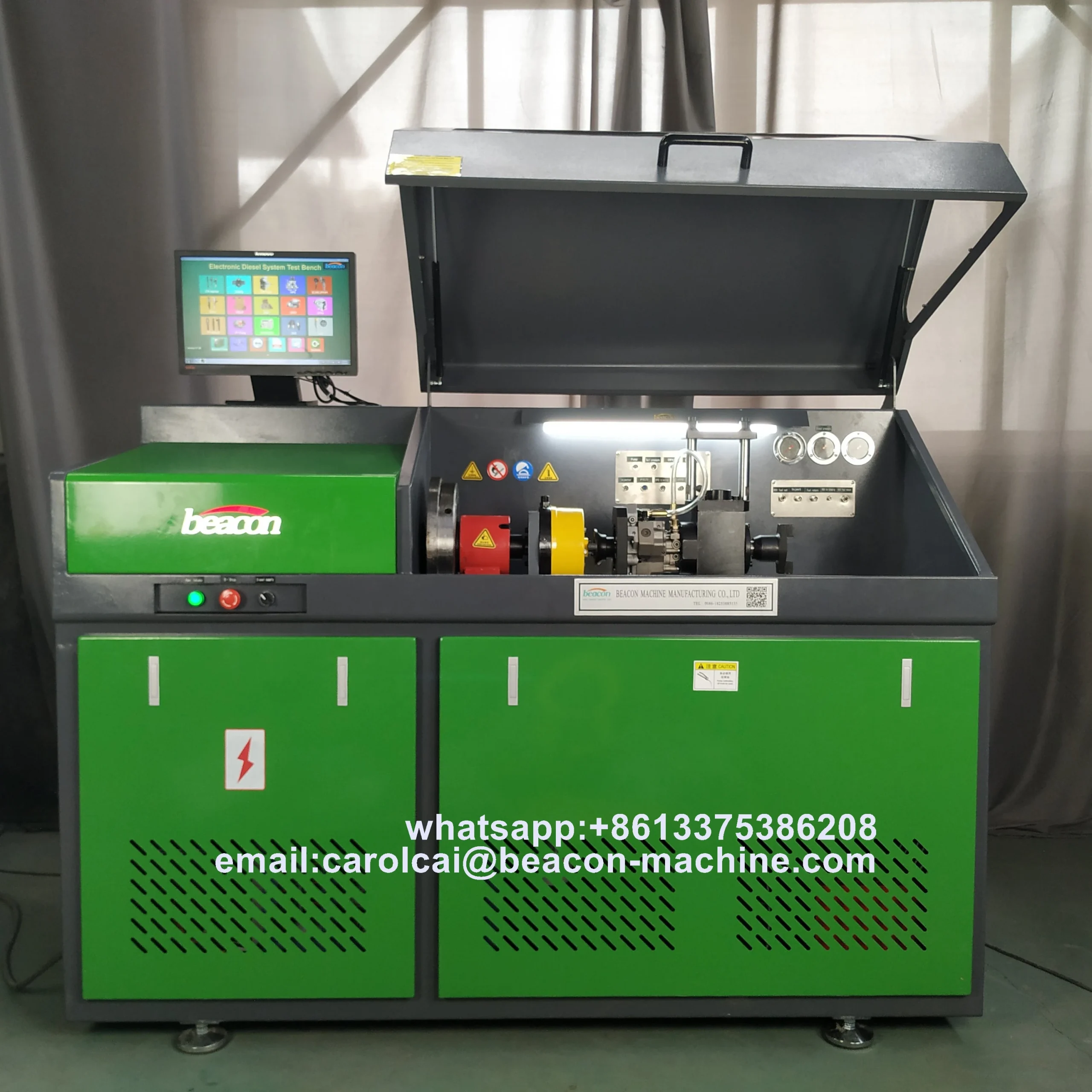

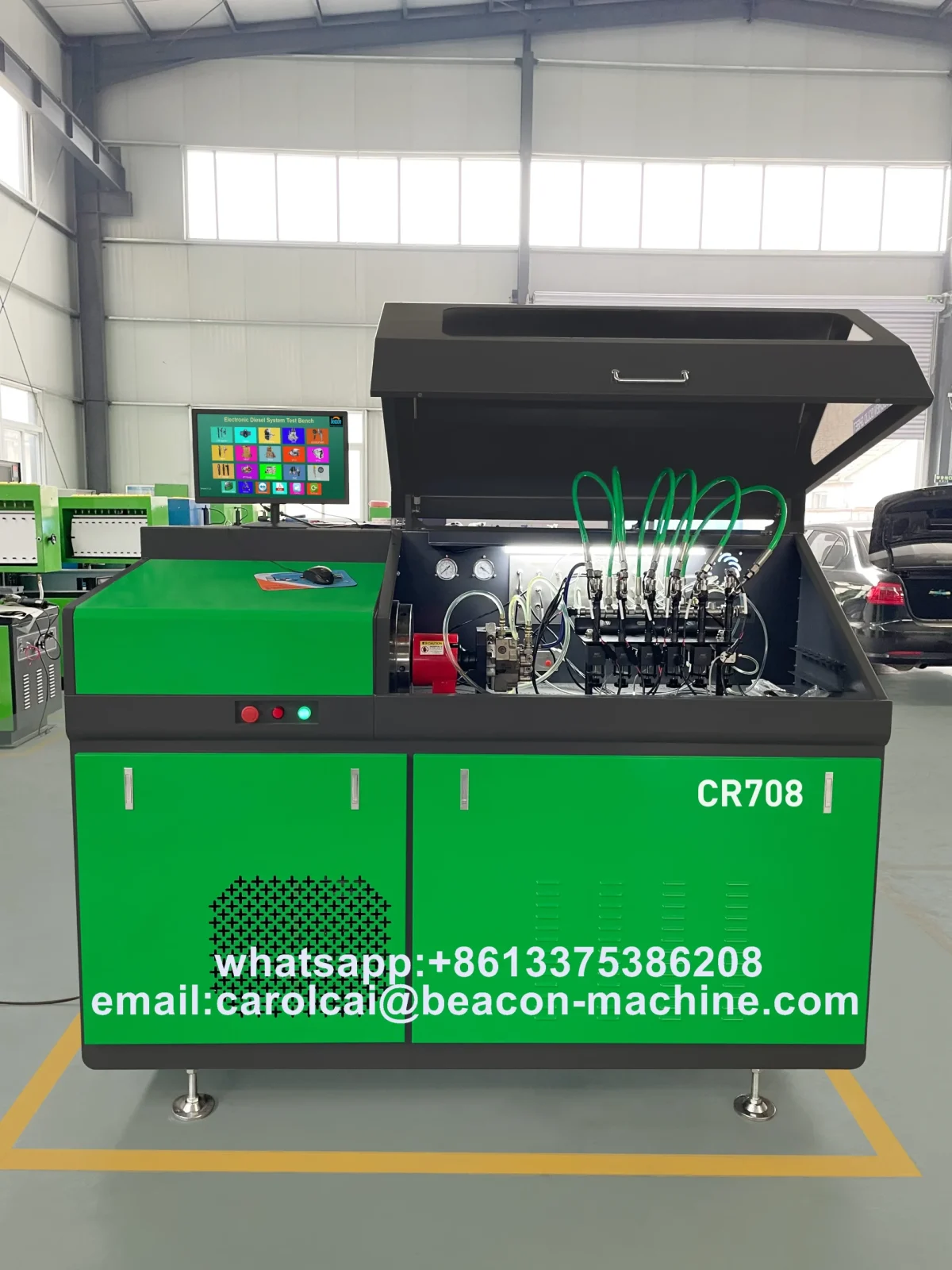

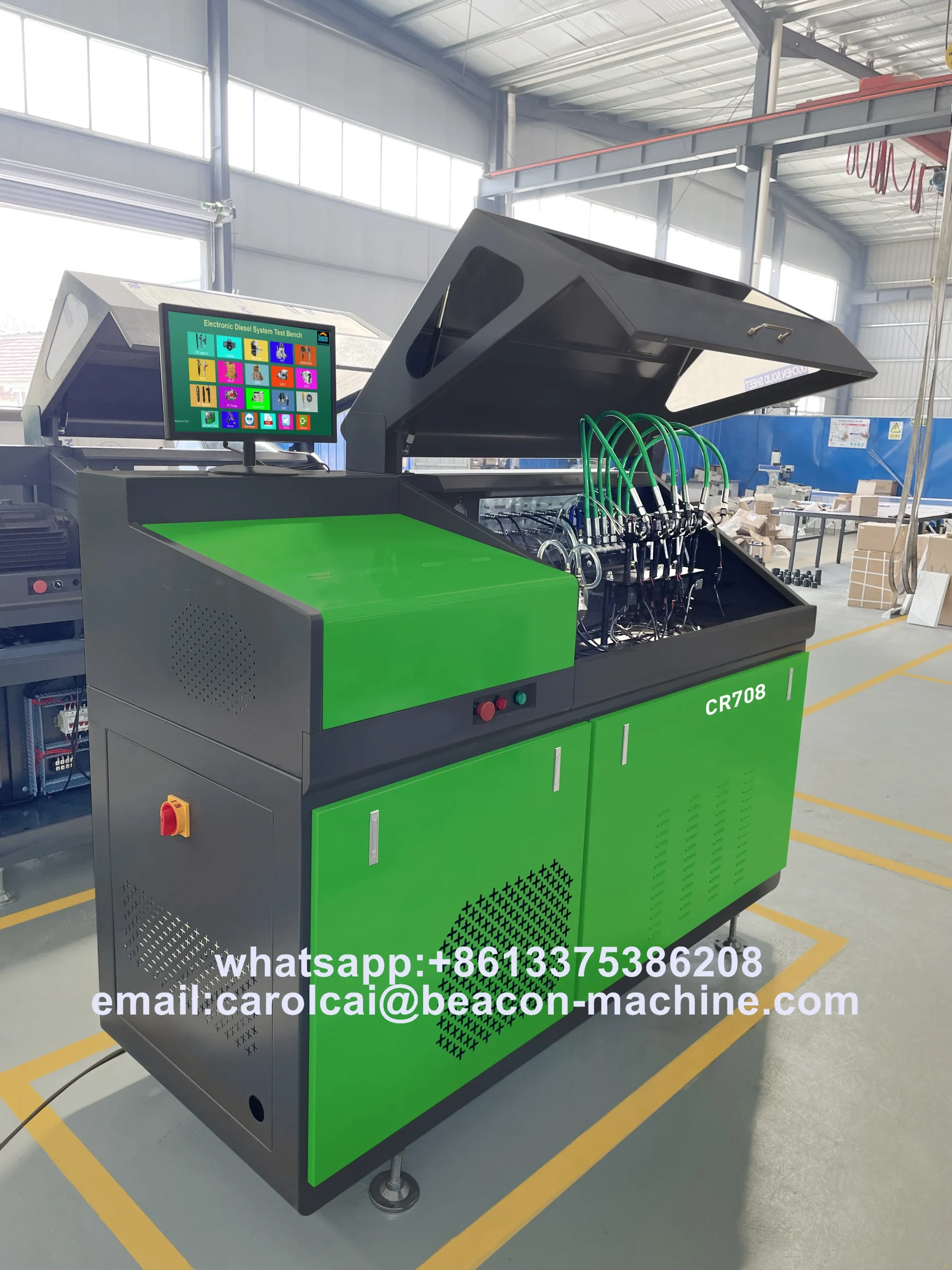

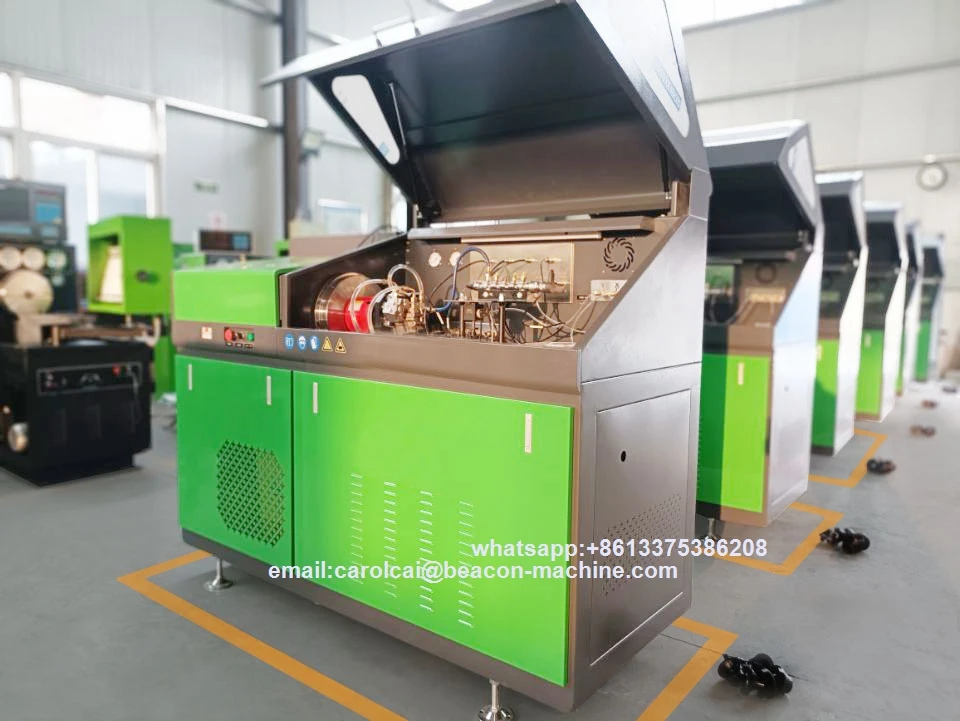

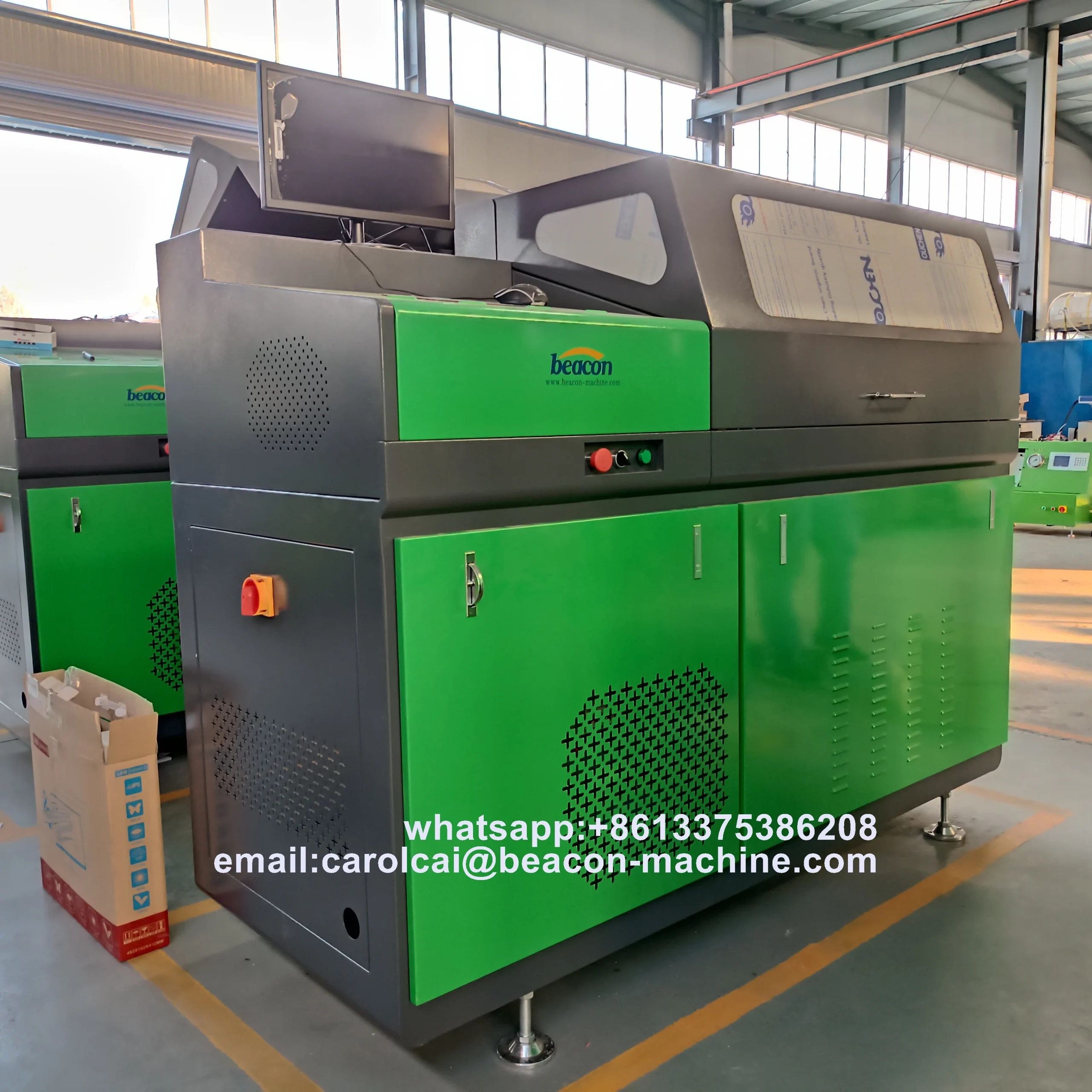

CR708 COMMON RAIL TEST BENCH
is mainly test for common rail pump and Injector. Also it is continuous fuel delivery analysis computerised measuring system for conventional and new diesel injection systems. The electronic fuel delivery measuring system is compulsory for modern diesel injection system testing. It guarantees a high level of reproductivity of the measured Value. Now our the machine is our newest system , the system include huei ,eui eup function
1.System Application: The system is suitable for detection of BOSCH, DENSO, DELPHI and SIEMENS common rail pump and injectors.
Such as CP1, CP2.CP3, HP3 series injector pump and the type of Electromagnetic injectors,
2.Technical Parameters:
|
1, Main motor speed
|
0-4000 r / min can be adjustable.
|
5, Fuel Injector Hold Time Control
|
0-65535us
|
|
2, Motor power
|
7.5KW, 11KW, 15KW, 18.5KW, optional
|
6 Delivery Oil CountControl
Control accuracy |
0-1000 times
1 times |
|
3, Fuel Injector open voltage Control range
|
12V, 80V, 150V Control accuracy: phase adjustment
|
7, Fuel pressure control
Control accuracy |
0-2500bar
1bar |
|
4, Injector opening frequency Control
|
0-1000HZ Control accuracy: 1HZ
|
8, Electronic power
|
3 PHASE 380V or 3 PHASE 220V
|
Additional information
| Use |
Auto Testing Machine |
|---|
