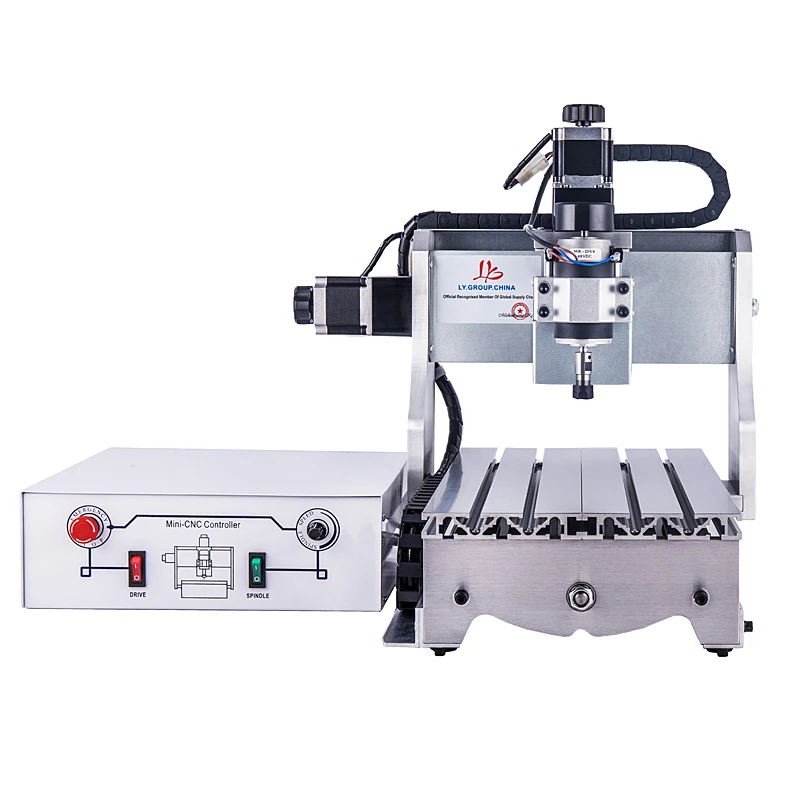

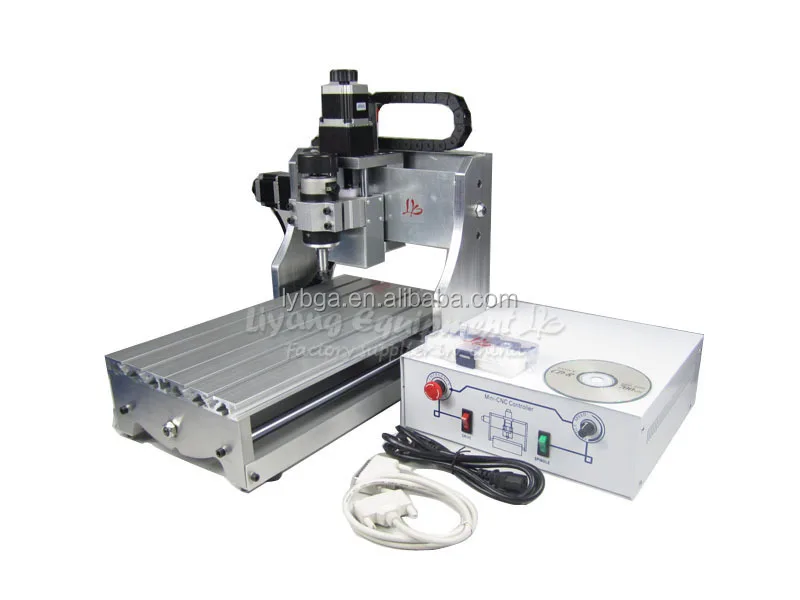

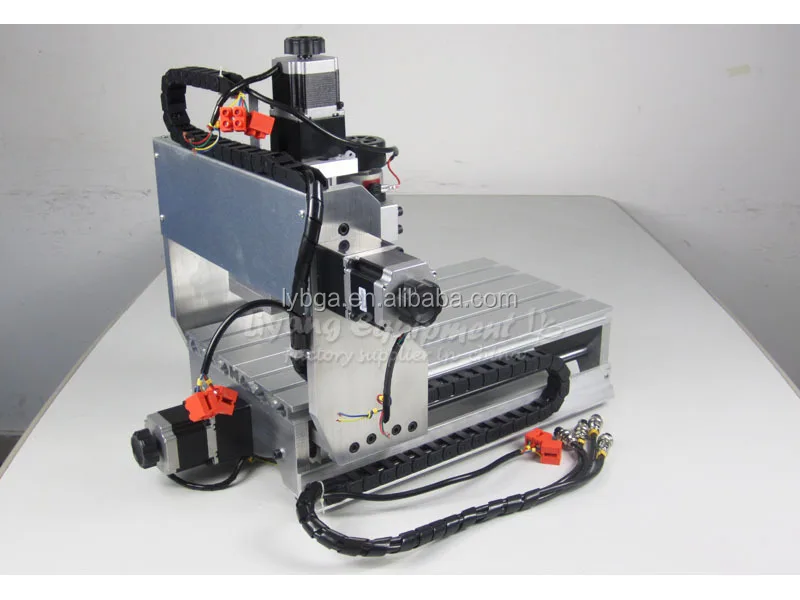

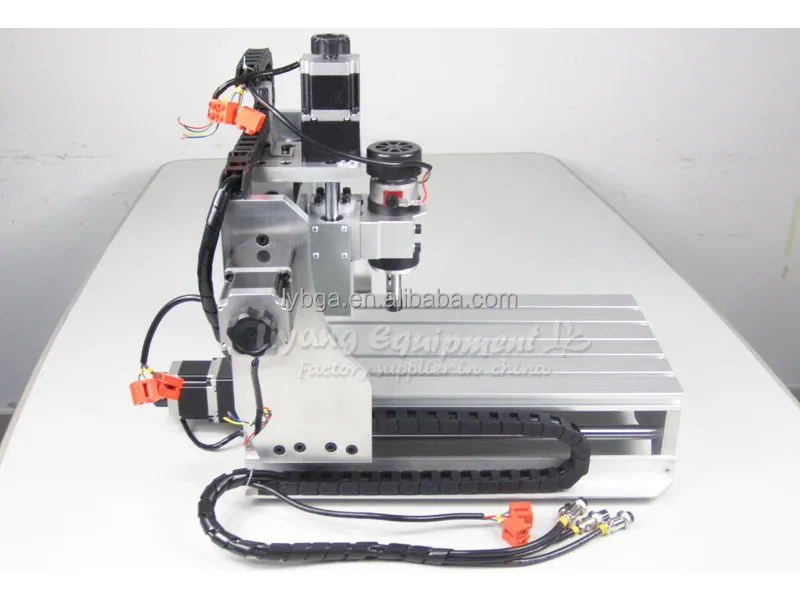

Custom Precision CNC Router Drilling Milling Engraver Machine Desktop CNC Carving Apparatus for Wood Metal Working 3 Axis

Machine Dimensions:

560X450X450mm

Rack material:

6061 and 6063 Hard aluminum alloy
(The unique and dedicated mold extrusion profiles, Let counterfeiters dwarfs.)

Engraving area:

300X200mm

Z-Axis Stroke:

60mm, Engraving depth depends on the length of the tool edge)

Acceptable material thickness:

≤60mm

Rail type:

Chromeplate shaft+Linear Bearings,)(Surface hardening 61HRC)

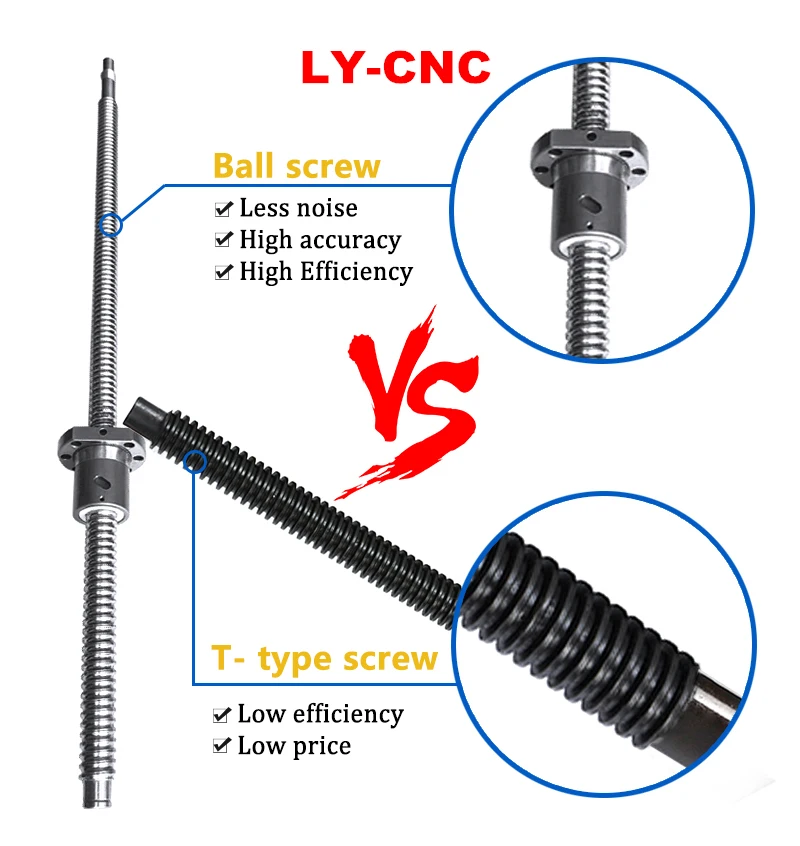

Type of screw:

NEW  Ball screw1605,Pitch 5mm

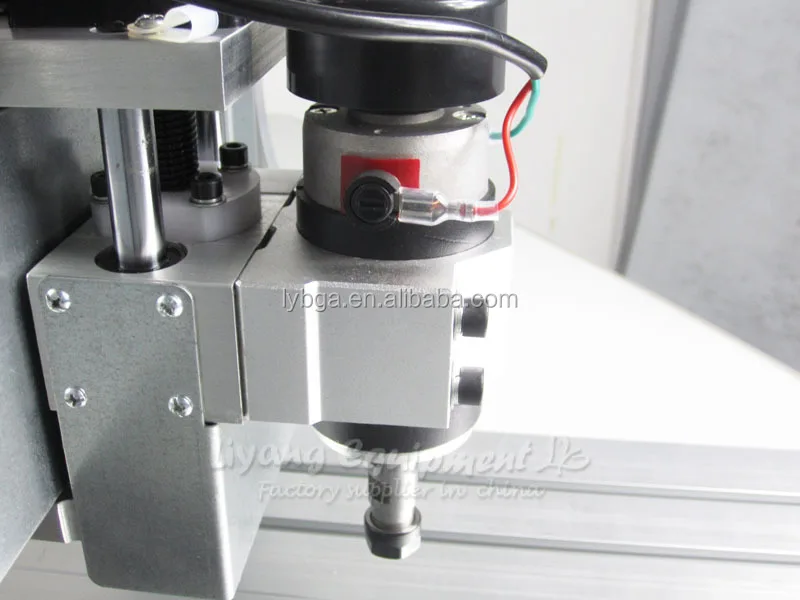

Spindle motor:

300W/12000r/min((Very small noise))

Collet type:

ER11,1/8″(3.175mm) Collet

Stepper motor and drive:

two-phase hybrid stepping motor , 3A/PHASE,150N.cm, 8 segments drive.

Maximum operating speed:

4000mm/min (Engraving speed : 300-3000mm/min)

Repeat positioning Accuracy:

0.03mm

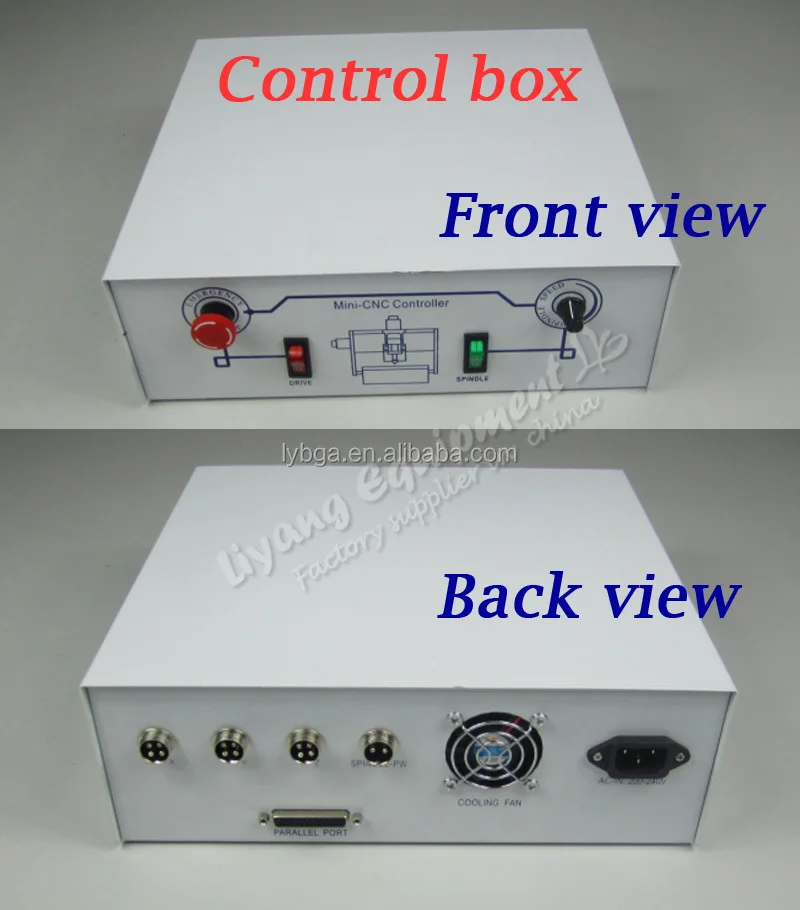

Communication interface:

Parallel port (Must use the desktop computer, Does not support laptop)

Software Compatability:

Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM,coppercam)

Command code:

G code/.nc/.ncc/.tab/.txt

Machine weight:

25kg
