CY-MACH Automatic High Efficiency 200mm 5 Layer Lab Sieve Shaker for Coal Mineral Ore Laboratories Equipment
$1,864.61 – $2,408.61
Guaranteed Safe Checkout
Features & Compatibility

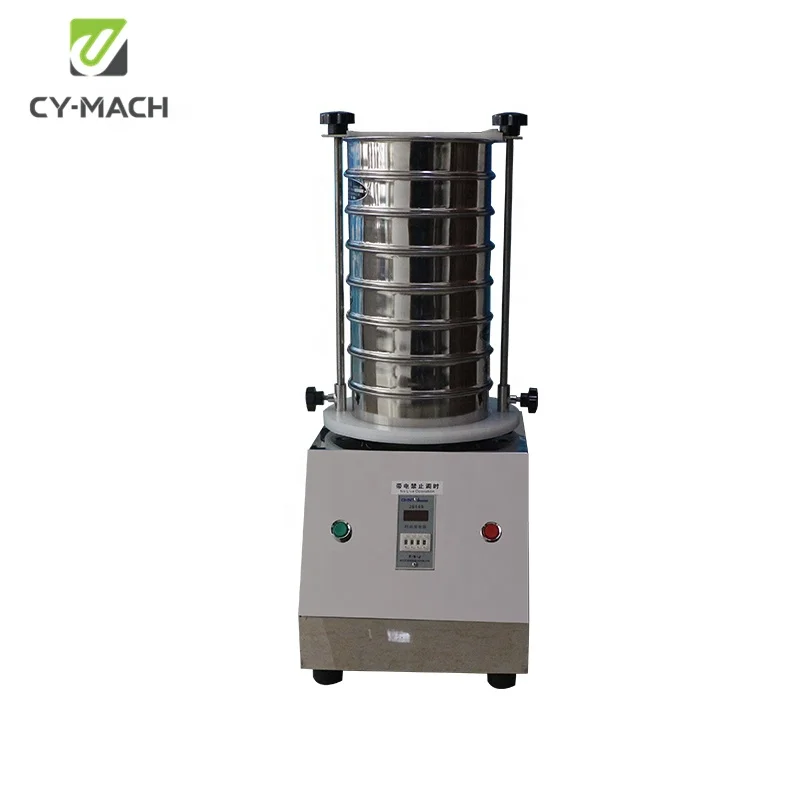

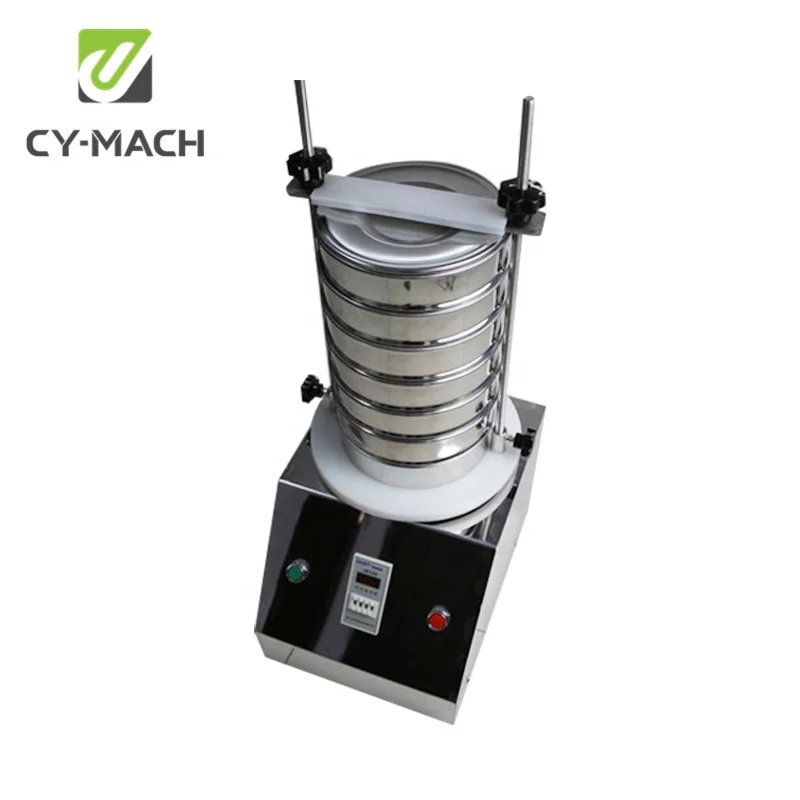

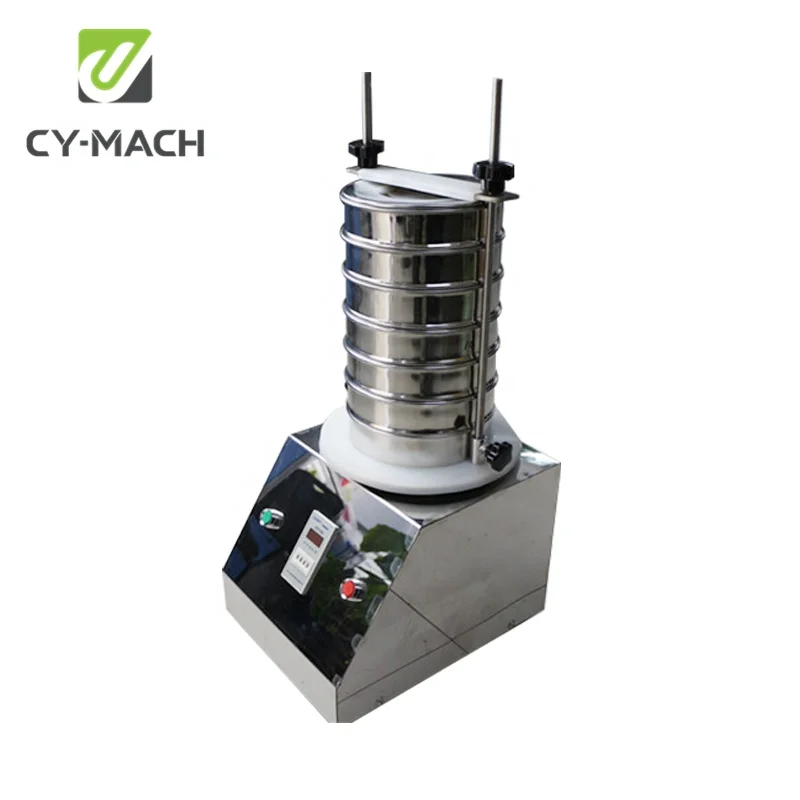

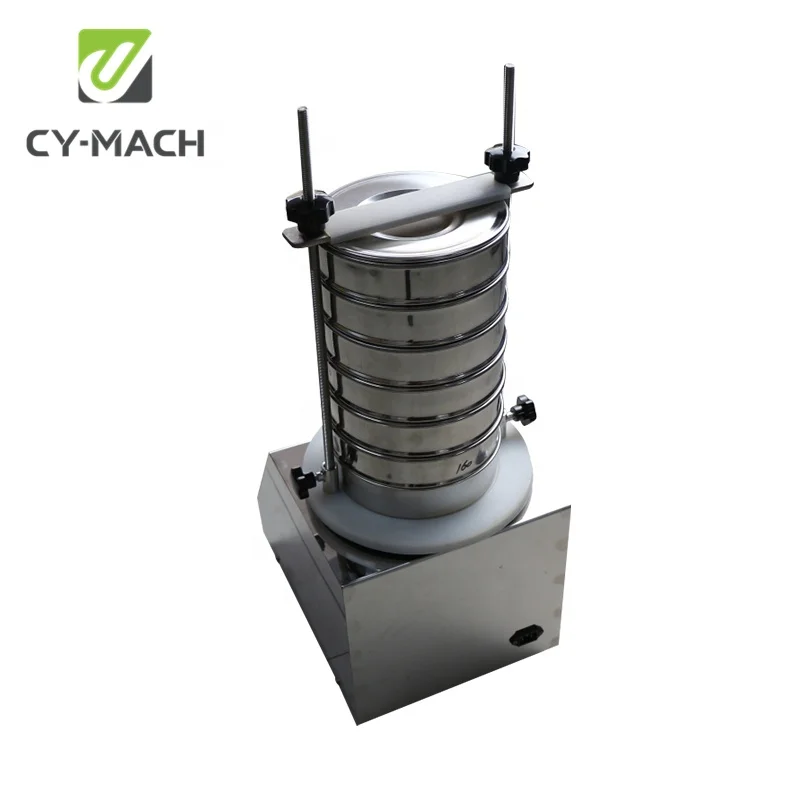

Product Display
All laboratory analysis equipment work with an vibration motor drive. This drive produces a 3 D throwing motion that moves the material to be sieved equally over the whole sieving surface. Multi-layer standard lab analysis test sieve with timer is a new and precision equipment for continuously selecting / sifting / testing the powder. It uses the new type vibrating motor as the source of vibration. It is usually equipped with Φ 100 mm, Φ 200 mm standard sieve, standard sieve and Φ 300 mm standard sieve. We can also produce the test sieve according to the customer’s requirements.
Product Paramenters
|
Items
|
Name
|
Unit
|
Data
|
|
1
|
Layers
|
layer
|
1-8
|
|
2
|
Diameter
|
mm
|
200, 300
|
|
3
|
Sieve frame
|
mm
|
100, 200, 300, 400
|
|
4
|
Noise
|
db
|
below 50
|
|
5
|
Feeding Capacity (Once)
|
g
|
<200 g/ml
|
|
6
|
Amplitude
|
mm
|
<5
|
|
7
|
Voltage
|
v
|
220 v / customized
|
|
8
|
Power
|
kw
|
0.125
|
|
9
|
Overall Dimension
|
mm
|
450*410*700
|
|
10
|
Weight
|
kg
|
45
|
Products Description
1.The machine has the function of re-crashing the agglomeration materials and is safe and reliable for a long time operation 2.The screen machine can be placed a maximum eight layers tests sieves (including the bottom sieve), can separate the material into 2 to 7 grade at the same time 3.The products can be automatic shut down according to the electric time controller and accurate judgement of the online product quality 4.These machines are suitable for both wet and dry sieving, and meet all ergonomic requirements for a modern laboratory. 5.Free adjustment of all process parameters (time, amplitude).
Additional information
| Use |
Vibration Testing Machine ,CY300 ,CY200 |
|---|
