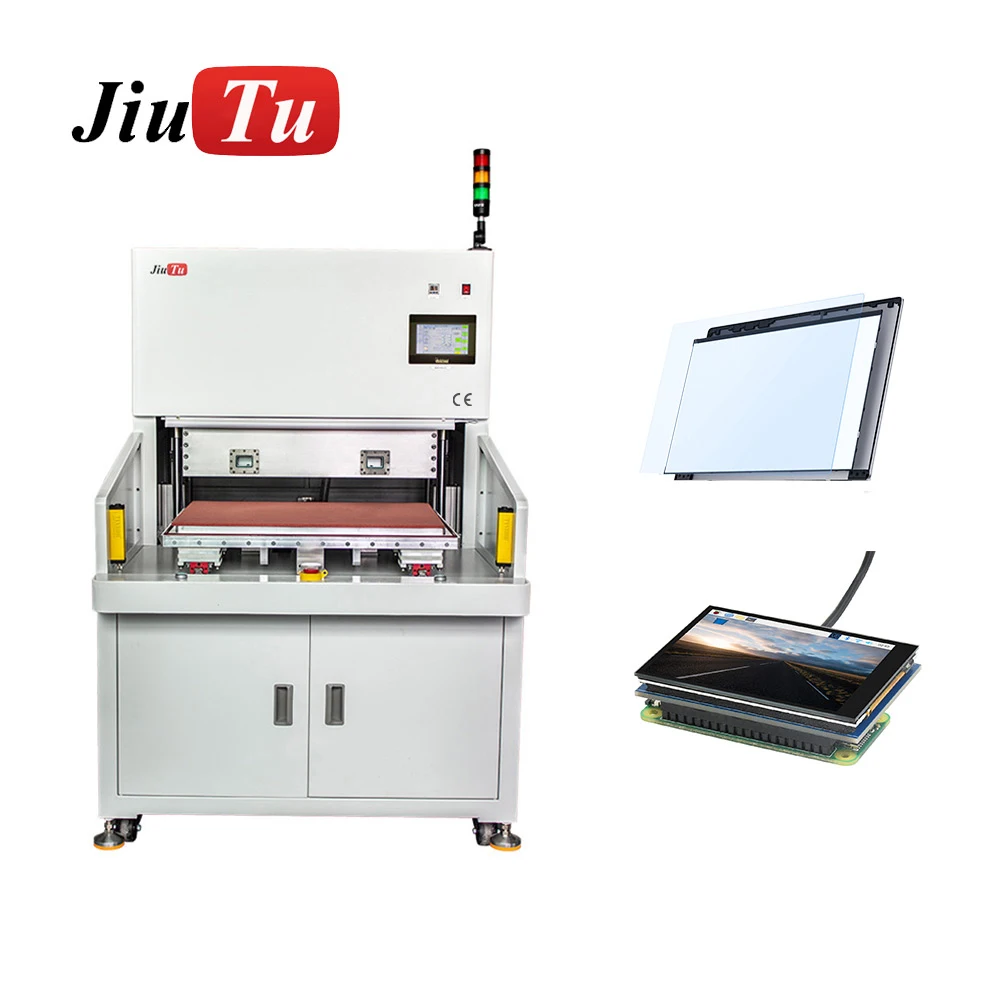

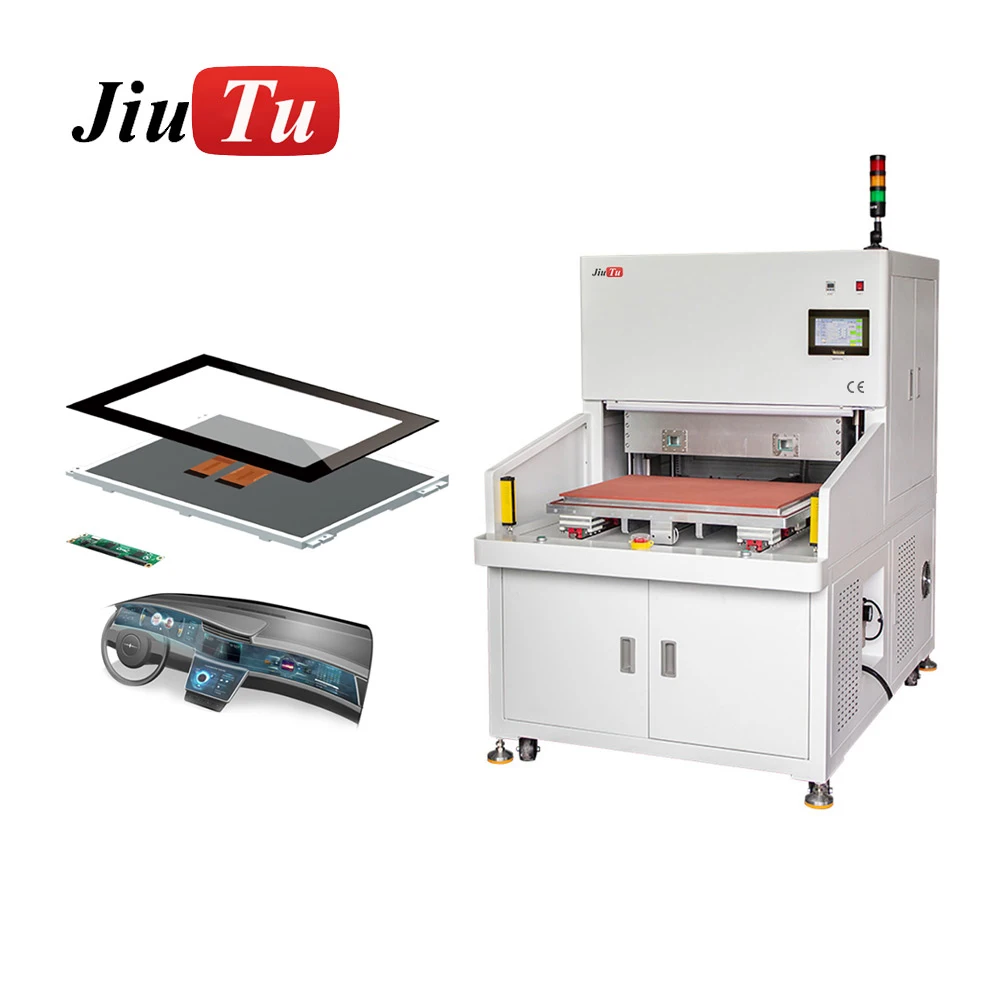

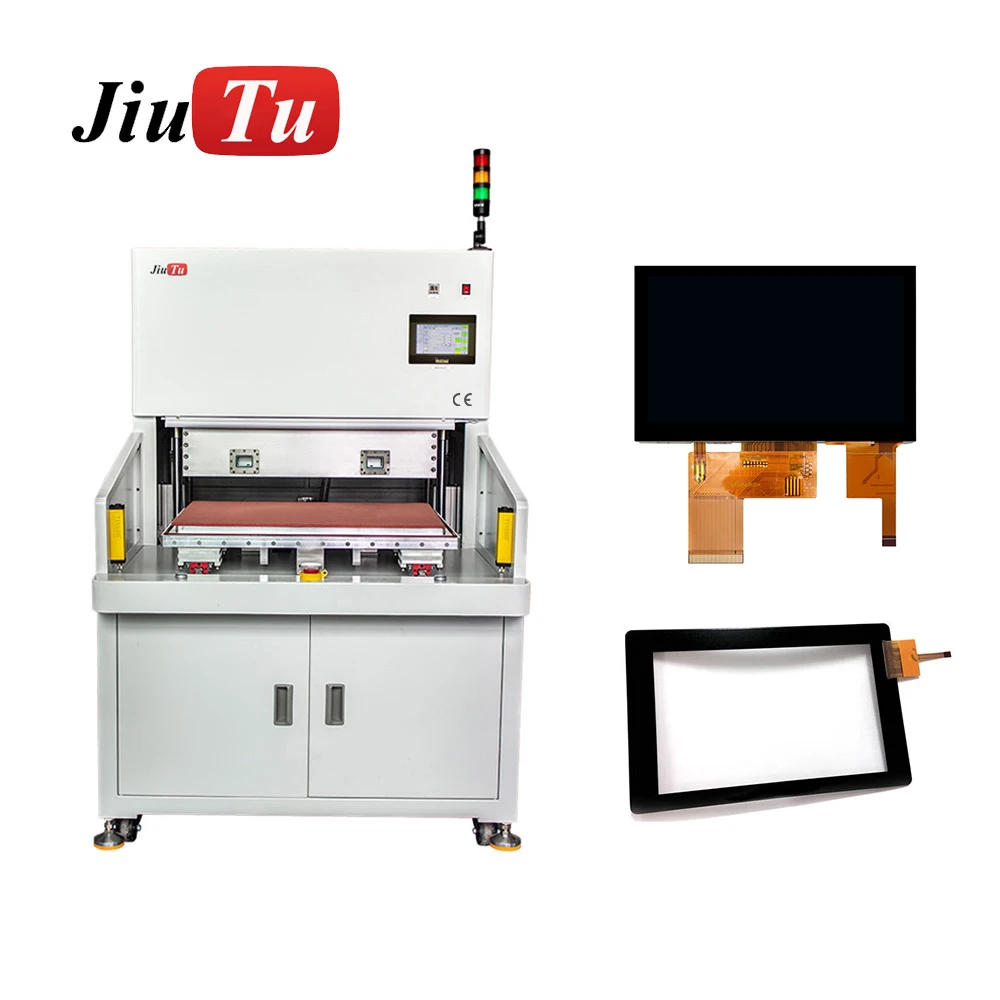

Jiutu High Press Temperature Equipment Bonding Hard Plastic Chips for Laboratory Heat Press
$107,561.68
Guaranteed Safe Checkout
Features & Compatibility
We are one of the
professional manufacturer of LCD repaired machine.
No layer broker, so buy with confidence.
professional manufacturer of LCD repaired machine.
No layer broker, so buy with confidence.
With Jiutu logo, you will get
2+ years warranty in technology instruction. There are
over 100 video demos for clients.
2+ years warranty in technology instruction. There are
over 100 video demos for clients.

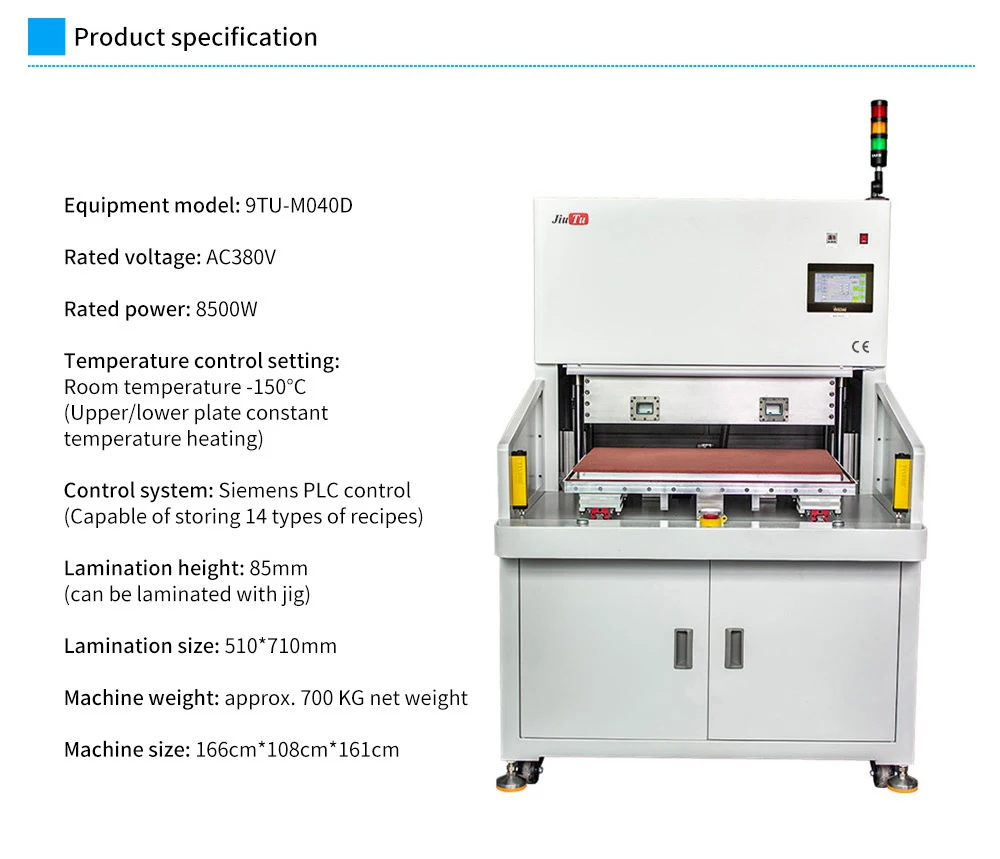

Specifications
|
P/N
|
9TU-M040D
|
||||||
|
Model
|
150 Degree Vacuum Laminator Hot Press Machine
|
||||||
|
Brand
|
Jiutu
|
||||||
|
Lamination Size
|
Under 32 inches
|
||||||
|
Tempature Range
|
up to 150℃
|
||||||
|
Success Rate
|
99%
|
||||||
|
Working Rated Power
|
7KW
|
||||||
|
Net Weight
|
600kg
|
||||||
|
Warrantty
|
2 Years
|
||||||
|
Working Temperature
|
Normal temp till -150 ℃ all works
|
||||||
|
Working Pressure
|
0.4-0.8Mpa can be adjusted
|
||||||
|
Volatge,Power Supply
|
380V 50Hz
|
||||||
Product Description

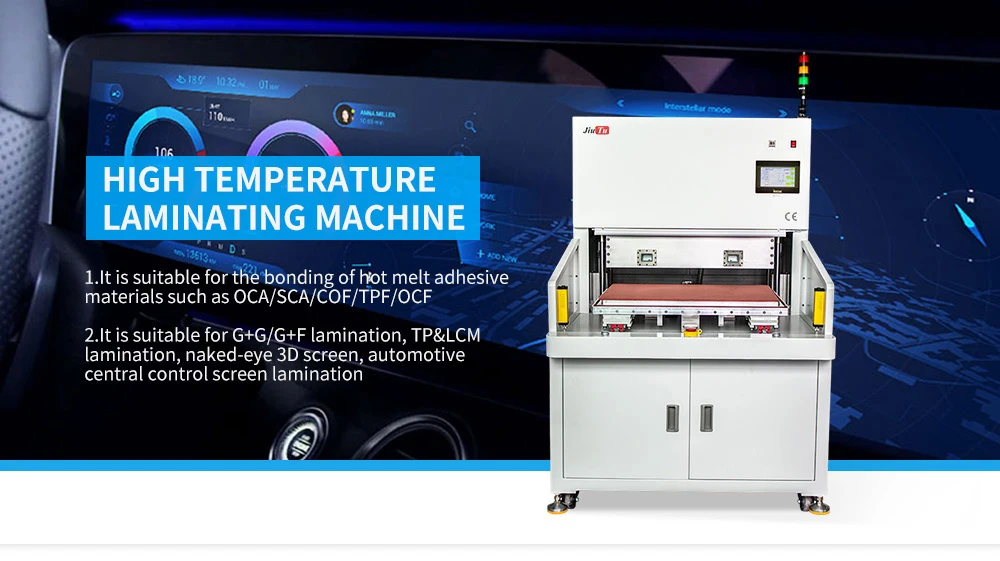

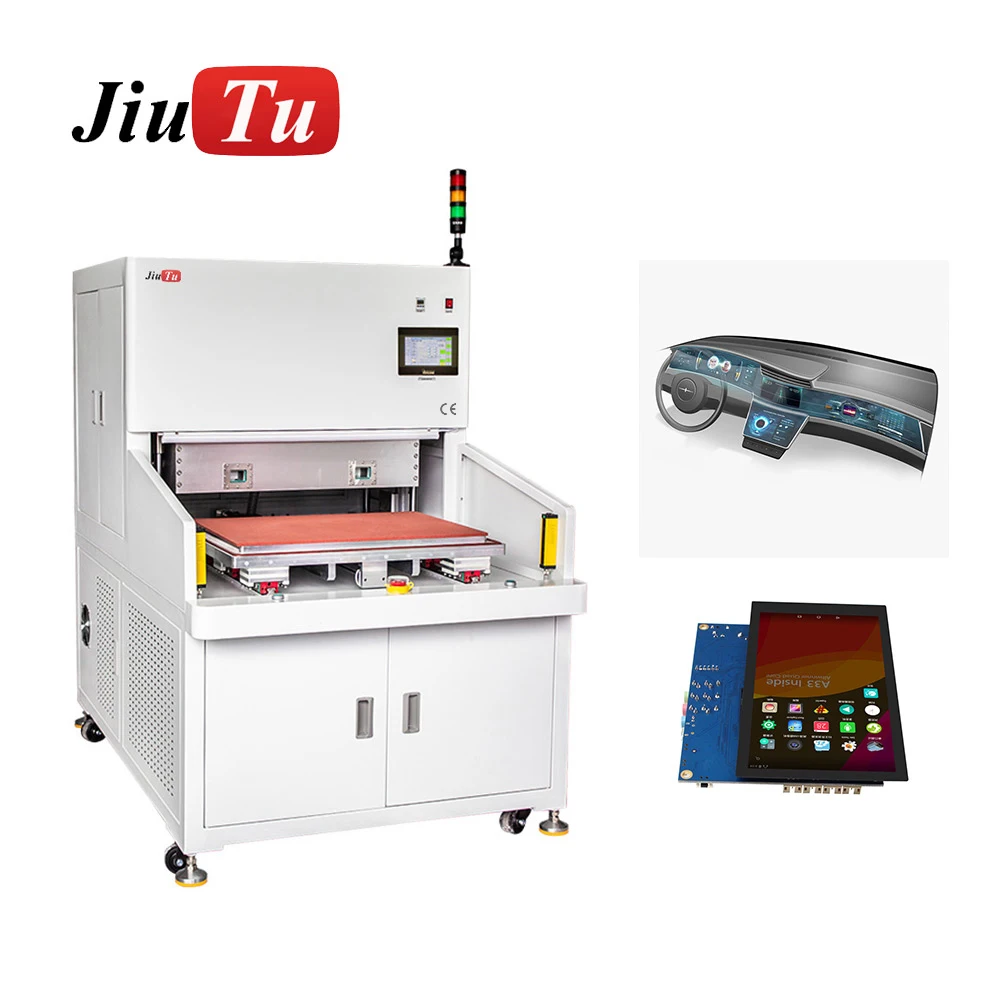

Vacuum Laminator Hot Press OCA SCA Lamination Machine
Automatic OCA SCA Vacuum Lamination Machine
Product Introduction :

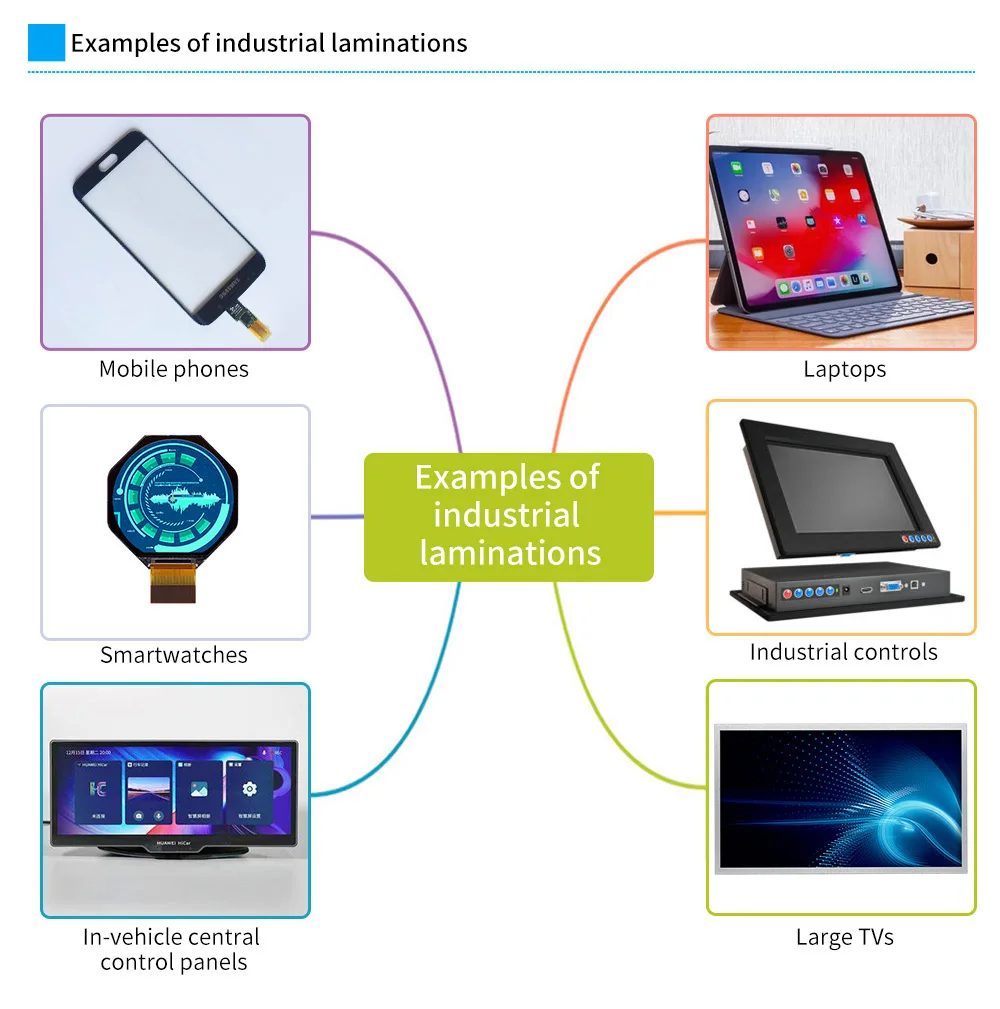

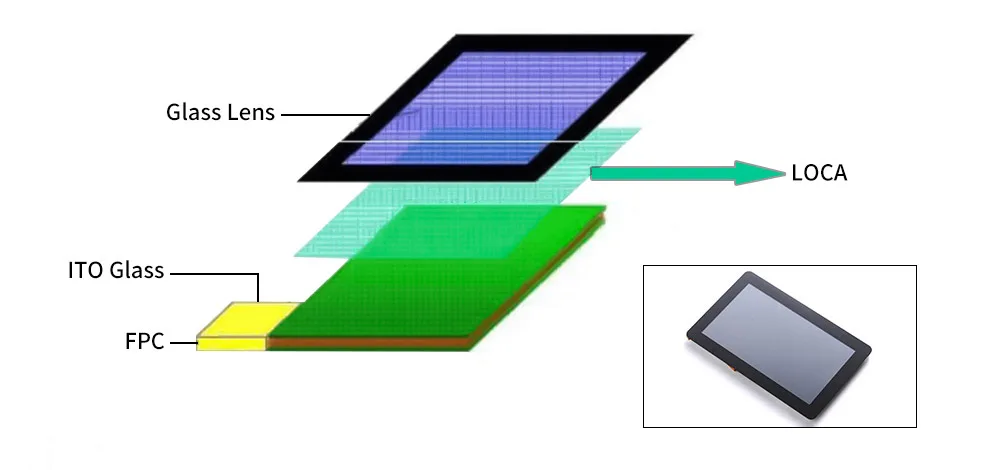

SCA, COF, and other hot-melt adhesive vacuum lamination and hot-press lamination, SCA/OCF and other hot-melt adhesive processes for medium and large size G+G and full lamination; Large-size vacuum laminating machine is specially used for laminating large-size hard-to-hard (G+G) hot-melt adhesives. This machine has the function of pressurizing and heating in a vacuum state, and is suitable for OCA.OCF.TPF and large.COF .Medium and large size G+G full lamination in SCA and other hot melt adhesive processes, OCA process G+G lamination, suitable for naked eye 3D and TP/LCM full lamination of various sizes
SCA, COF, and other hot-melt adhesive vacuum lamination and hot-press lamination, SCA/OCF and other hot-melt adhesive processes for medium and large size G+G and full lamination; Large-size vacuum laminating machine is specially used for laminating large-size hard-to-hard (G+G) hot-melt adhesives. This machine has the function of pressurizing and heating in a vacuum state, and is suitable for OCA.OCF.TPF and large.COF .Medium and large size G+G full lamination in SCA and other hot melt adhesive processes, OCA process G+G lamination, suitable for naked eye 3D and TP/LCM full lamination of various sizes
Main Features :

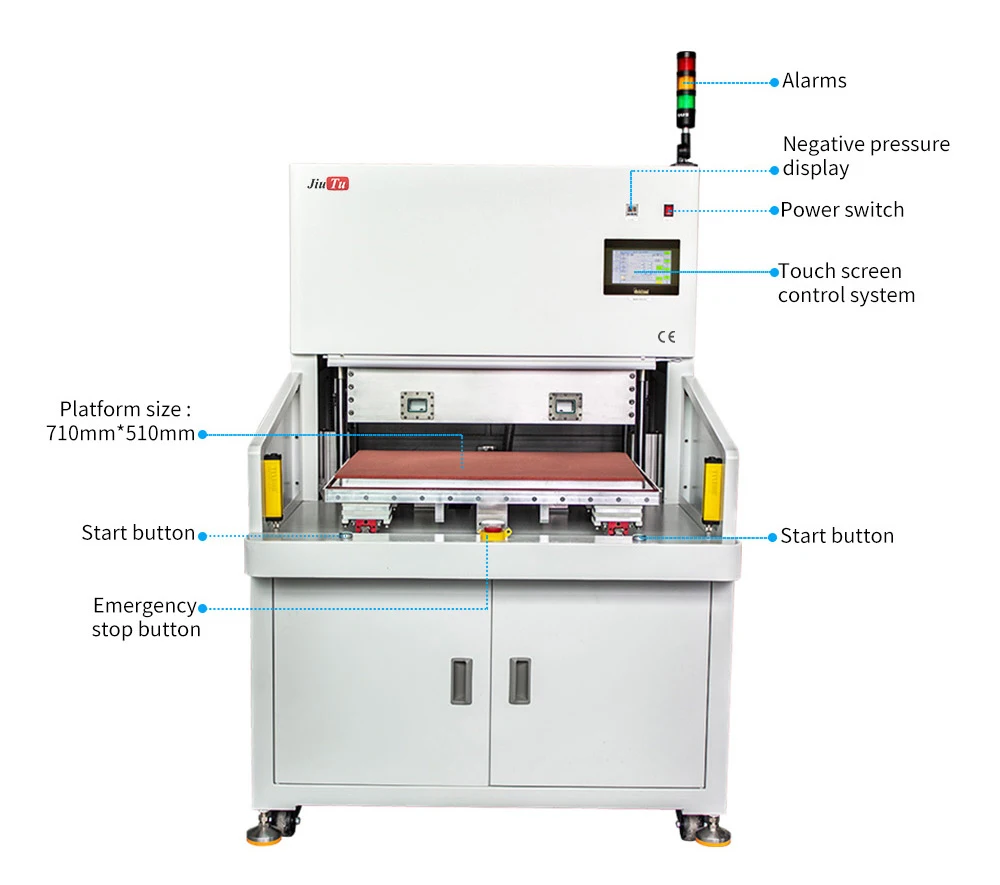

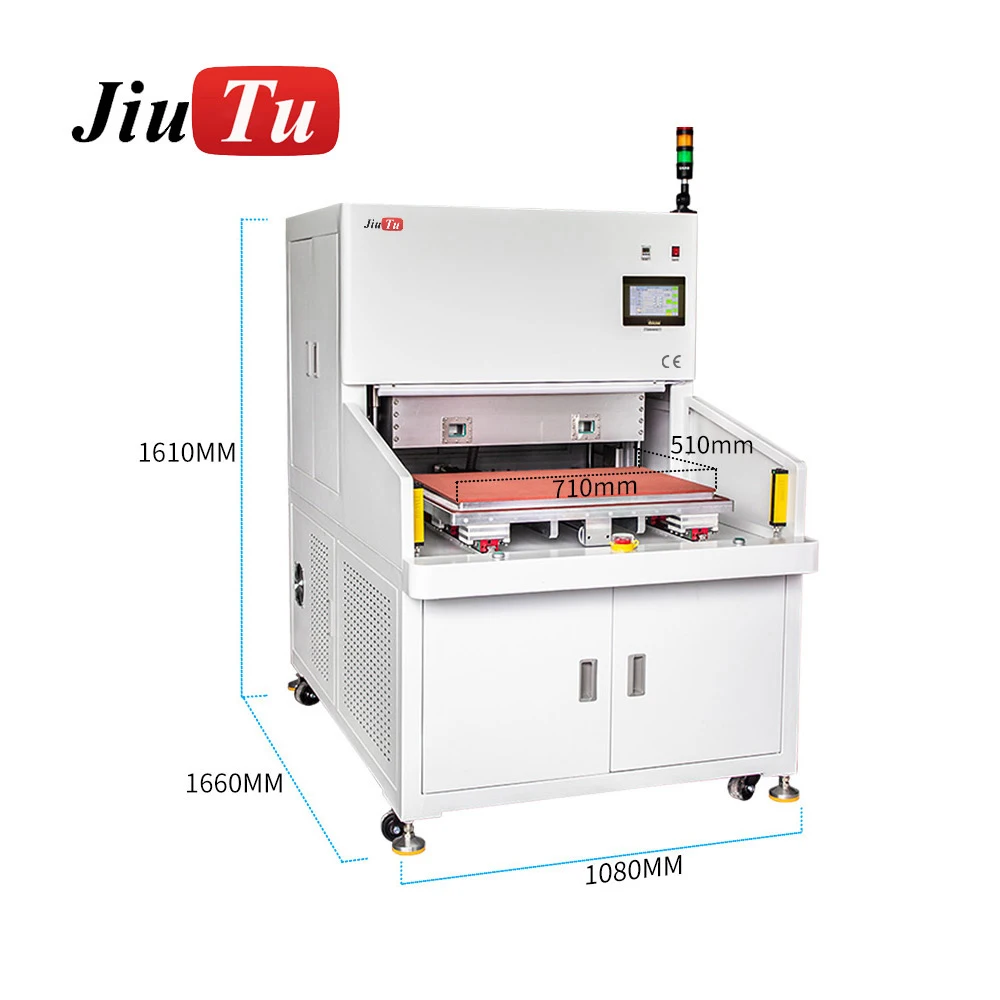

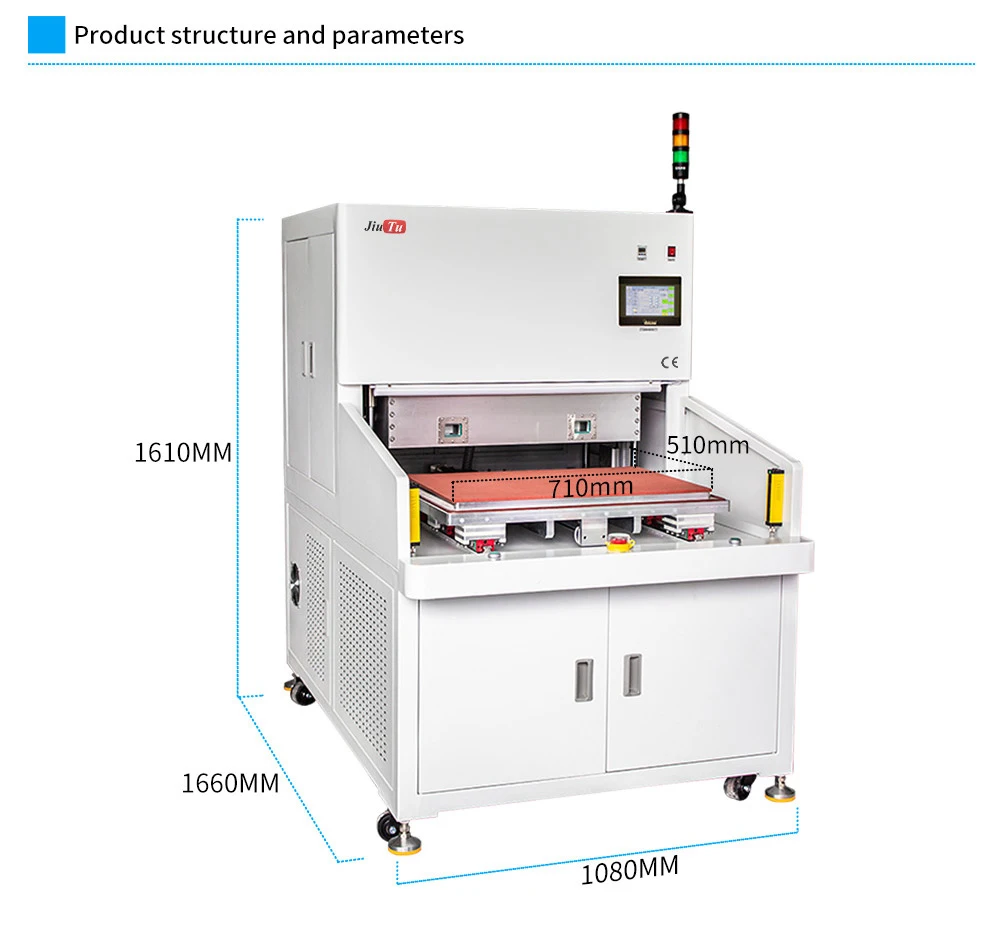

1. High Temperature vacuum laminator fit for LCD Screen up to 32 inches , lamination area size 510*710mm
2. Customized mold will be necessary based on the actual product
3. Work fast needs 25-40 seconds for each time. depend on the product
4. Fully automatic , easy operation
5. It is mainly suitable for the bonding of hard plastic chips such as PMMA, PC, PP, COP, COC, BOPET, CBC, resin (part), polyethylene (part), etc.) The maximum temperature is 150 degrees; the maximum pressure is 10KN.
Specification :

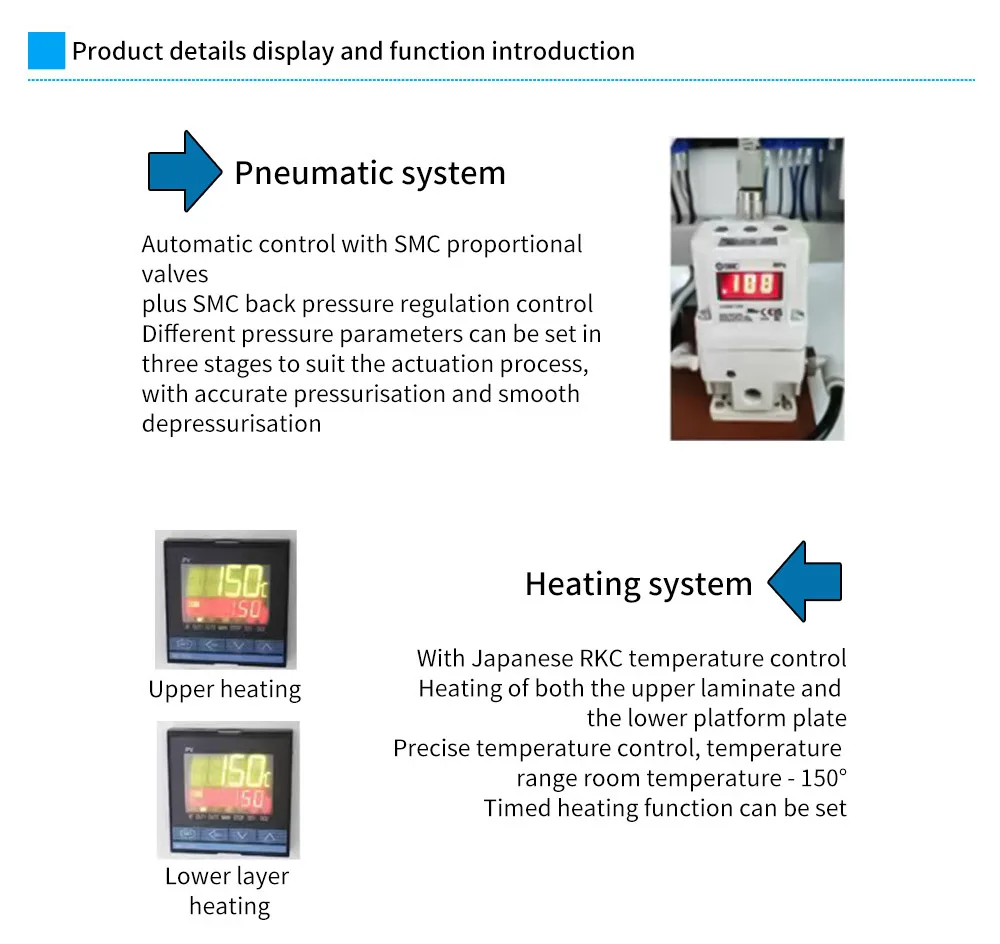

1. Using up and down heating, the temperature can be set up to 150 degrees.
2. The working platform can adjust the balance function.
3. The maximum pressure can reach 1.2 tons.
4. The action of the equipment is driven by a cylinder
Working principle :
Vacuum hot press is a complete set of equipment for hot-pressing materials under vacuum conditions; it mainly uses resistance heating, pressurized by the pressure head of the cylinder, and hot-melts the hot-melt adhesive under high-temperature and vacuum conditions to bond two objects Together, hardness and other mechatronic thermal properties.
Working area :
1,University laboratory test, company laboratory test, medical field,
2, Laboratory research and development equipment
Additional information
| model number |
9TU-M040D |
|---|
