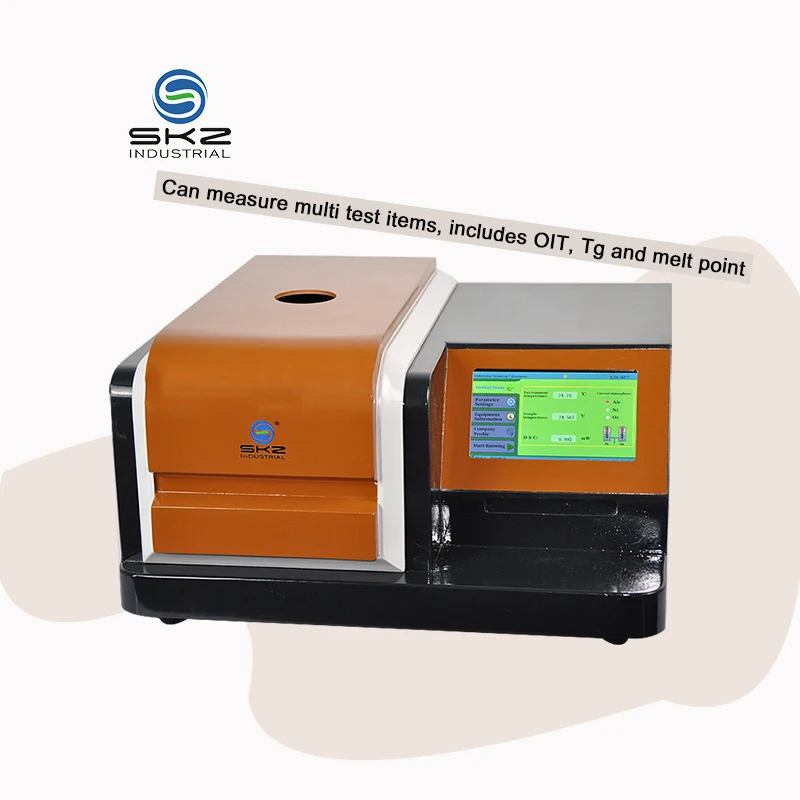

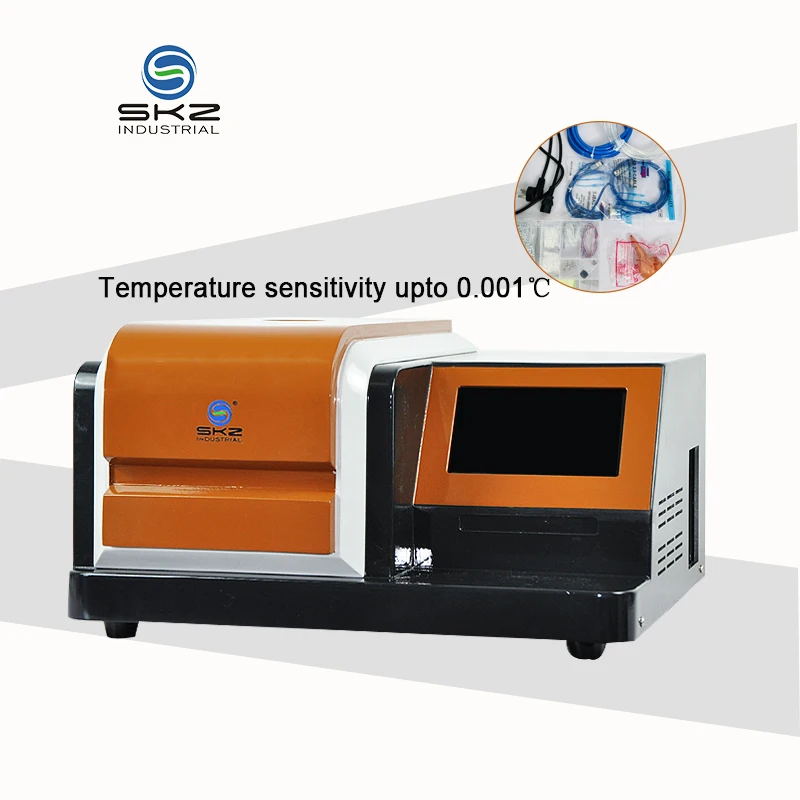

Laboratory Automatic 550C Differential Scanning Calorimetry Oit Oxidative Induction Time Determination Equipment Tester
$15,033.68
Guaranteed Safe Checkout
Features & Compatibility
laboratory automatic 550C differential scanning calorimetry oit oxidative induction time determination equipment tester
DSC is designed to determine the inner heat transition relating to temperature and heat flow, it is widely used in the field of polymer development, performance testing & quality control. DSC research and development includes the following field: glass transition temperature (Tg), melting point, cold crystallization, crystallization, phase transition, oxidation induction time (OIT).
Standards:
ISO/TR10837:1991,ASTM D3895-1998,ASTM E 967,ASTM E 968,ASTM E 793,ASTM D 3895, ASTM D 3417,ASTM D 3418, ISO 11357-6
Main Features:
1. The industrial-grade 7-inch touch screen displaysrichinformation.
2. Brand-new metal furnace body structure, with better baseline and higher accuracy.The heating adopts indirect conduction method, which has high uniformity and stability, reduces pulse radiation, and is better than traditional heating mode.
3. USB communicationinterface, strong versatility, reliable and uninterrupted communication, supports self-recovery connection function.
4. Automatically switch the two-channel atmosphere flow, fast switching speed and short stabilization time. At the same time, a protective gasinput is added.
5. The softwareis simple andeasy to operate.
Standards:
ISO/TR10837:1991,ASTM D3895-1998,ASTM E 967,ASTM E 968,ASTM E 793,ASTM D 3895, ASTM D 3417,ASTM D 3418, ISO 11357-6
Main Features:
1. The industrial-grade 7-inch touch screen displaysrichinformation.
2. Brand-new metal furnace body structure, with better baseline and higher accuracy.The heating adopts indirect conduction method, which has high uniformity and stability, reduces pulse radiation, and is better than traditional heating mode.
3. USB communicationinterface, strong versatility, reliable and uninterrupted communication, supports self-recovery connection function.
4. Automatically switch the two-channel atmosphere flow, fast switching speed and short stabilization time. At the same time, a protective gasinput is added.
5. The softwareis simple andeasy to operate.
Specification
|
Temperature range
|
RT~ 550 ℃
|
|
Heating rate
|
0.1～80℃/min
|
|
Temperature resolution
|
0.001℃
|
|
Temperature fluctuations
|
±0.001℃
|
|
Temperature repeatability
|
±0.1℃
|
|
Constant temperature time
|
Program setting ≤24h
|
|
DSC range
|
0~±600mW
|
|
DSC noise
|
0.01μW
|
|
DSC resolution
|
0.01μW
|
|
DSC accuracy
|
0.01mW
|
|
Atmosphere control gas
|
Nitrogen, Oxygen (instrument switch automatically)
|
|
Gas flow rate
|
0-300mL/min
|
|
Gas pressure
|
0.2MPa
|
|
Control Mode
|
Rising temperature, constant temperature(full automatic)
|
|
Curve scanning
|
Rising scan
|
|
Gas flow control
|
Built-in digital flow meter & Software control, automatic
|
|
Display
|
24 bit 7 inches LCD touch screen display
|
|
Data interface
|
standard USB connector
|
|
Parameter standard
|
With standard material, with calibration function, the user may correct temperature and heat enthalpy
|
|
Software
|
operating software
|
|
Thermocouples
|
Total 3 sets of thermocouples for:
1). Test sample temperature 2). test furnace temperature, 3). Test internal ambient temperature |
|
Cooling device
|
Air cool
|
|
Power
|
AC220V/50Hz
|
Product details
Additional information
| Use |
Temperature resolution:0.001 ℃ ,DSC range: 0~±600mW |
|---|
