Laboratory Digital Hotplate Magnetic Stirrer Price Hot Plate and Magnetic Stirrer With Stirrer Bar Laboratory Heating Equipments
$566.26 – $949.78
Guaranteed Safe Checkout
Features & Compatibility
Products Description
-Key Features
(1) Brushless DC motor is maintenance free and explosion-proof. (2) Digital temperature control with max. temperature at 340°C. (3) Digital speed control with max. speed up to 1500rpm. (4) Max. stirring quantity of H2O at 20L. (5) Safety circuits provide overheating protection. (6) The “HOT” warning will flash if the plate temperature is above 50°C even when the hotplate is turned off. (7) Wide range timer function from 1min to 99h59min(MS-H-ProT only). (8) High-resolution LCD display shows actual temperatures and speed (MS-H-ProT displays the time also). (9) External temperature control is possible by connecting the temperature sensor(PT 1000) with accuracy at ±0.2°C. (10) Stainless steel work plate with ceramic coating provides good chemical-resistant performance. (11) Remote function provides PC control and data transmission. (12) A wide variety of accessories are available.
Product Paramenters
|
Specifications
|

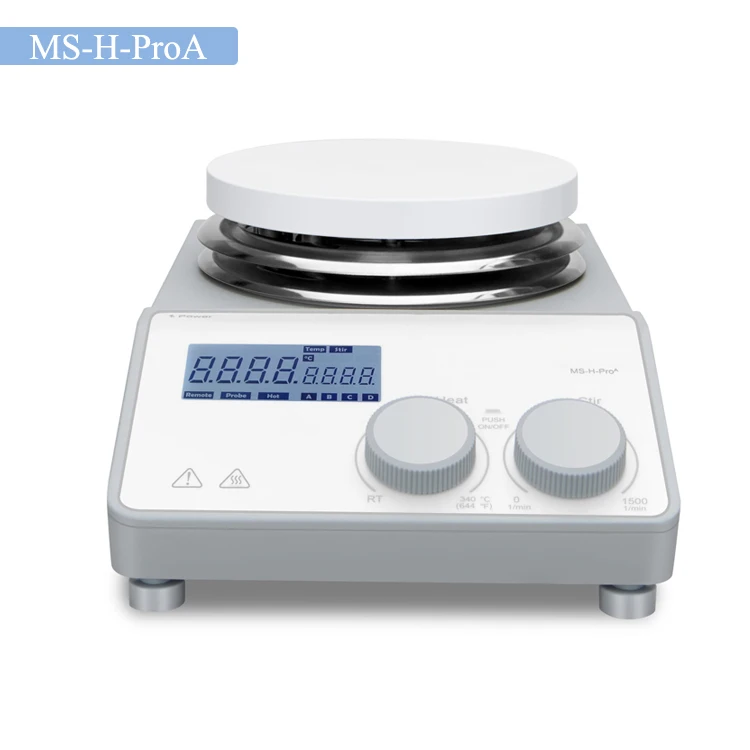

MS-H-ProA
|

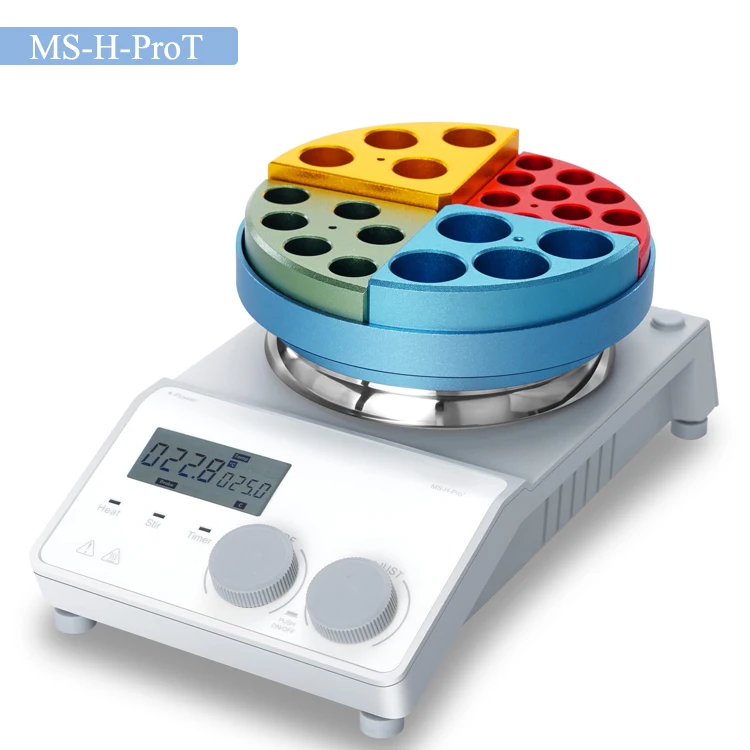

MS-H-PROT
|

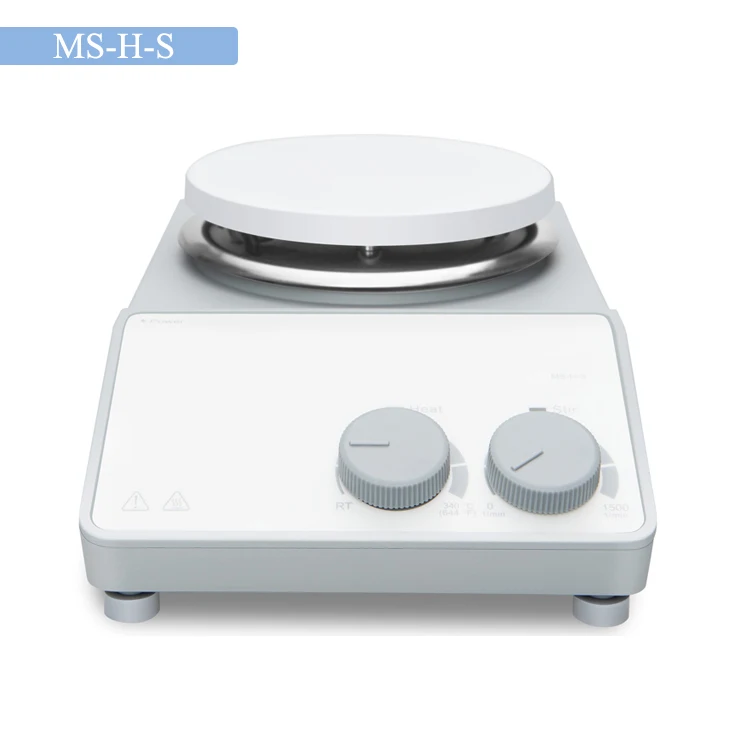

MS-H-S
|
|
Work plate dimension
|
φ135mm(5inch)
|
φ135mm(5 inch)
|
φ135mm(5 inch)
|
|
Work plate material
|
Aluminum cover with ceramic coating
|
stainless steel cover with ceramic
|
stainless steel cover with ceramic
|
|
Motor type
|
Brushless DC motor
|
Brushless DC motor
|
Brushless DC motor
|
|
Heating temperature range
|
Room temp.-340℃, increment 1℃
|
Room temp.-340°C, increment 1°C
|
Room temp.-340°C
|
|
Temperature display accuracy
|
±0.1℃
|
±0.1°C
|
±0.5°C
|
|
Heating power
|
600w
|
550W
|
550W
|
|
Speed range
|
100-1500rpm resolution±1rpm
|
100-1500rpm resolution±1rpm
|
0-1500rpm resolution±1rpm
|
|
Max. stirring quantity[H2O]
|
20L
|
20L
|
20L
|
|
Speed display
|
LCD
|
LCD
|
Scale
|
|
Temperature display
|
LCD
|
LCD
|
Scale
|
|
Motor rating input
|
18w
|
18W
|
18W
|
|
Motor rating output
|
10w
|
10W
|
10W
|
|
Max. magnetic bar[length]
|
80mm
|
80mm
|
80mm
|
|
Temperature control accuracy
|
±1°C(<100℃) ±1%(>100℃)
|
±1°C(<100℃) ±1%(>100℃)
|
–
|
|
External temperature sensor
|
PT1000 (accuracy ±0.2℃)
|
PT1000 (accuracy ±0.2)
|
–
|
|
Over temperature protection
|
420℃
|
420°C
|
420°C
|
|
“Hot” warning
|
50℃
|
50°C
|
|
|
Data connector
|
RS232
|
RS232
|
|
|
Protection class
|
IP21
|
IP42
|
IP42
|
|
Voltage
|
100~120/200-240V 50/60Hz
|
100-120/200-240V 50/60Hz
|
100-120/200-240V 50/60Hz
|
|
Power
|
650w
|
550W
|
550W
|
|
Dimension[WxDxH]
|
280×160×85mm
|
160×280×85mm
|
160×280×85mm
|
|
Weight
|
2.8kg
|
2.8kg
|
2.8kg
|
|
Permissible ambient temperature and humidity
|
–
|
5-40°C, 80%RH
|
5-40°C, 80%RH
|
|
Timer function
|
–
|
1min to 99h 59min
|
–
|
