Laboratory Glassware Distillation Short Path Head with Collection Cup and Vacuum Cold Trap Apparatus of Distillation
$2,311.01
Guaranteed Safe Checkout
Features & Compatibility
Laboratory Glassware Distillation Short Path Head with Collection Cup and Vacuum Cold Trap Apparatus of Distillation
Material: Boro 3.3

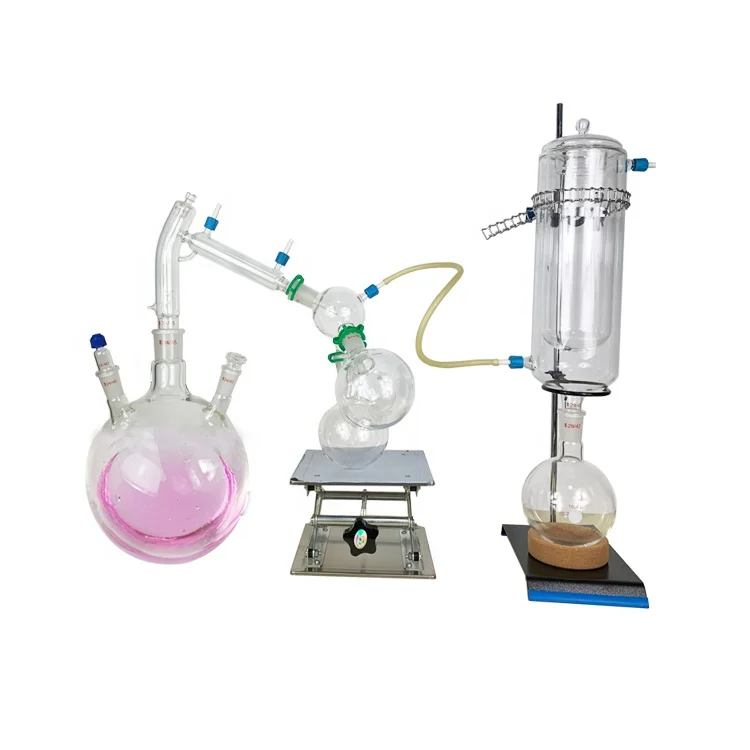

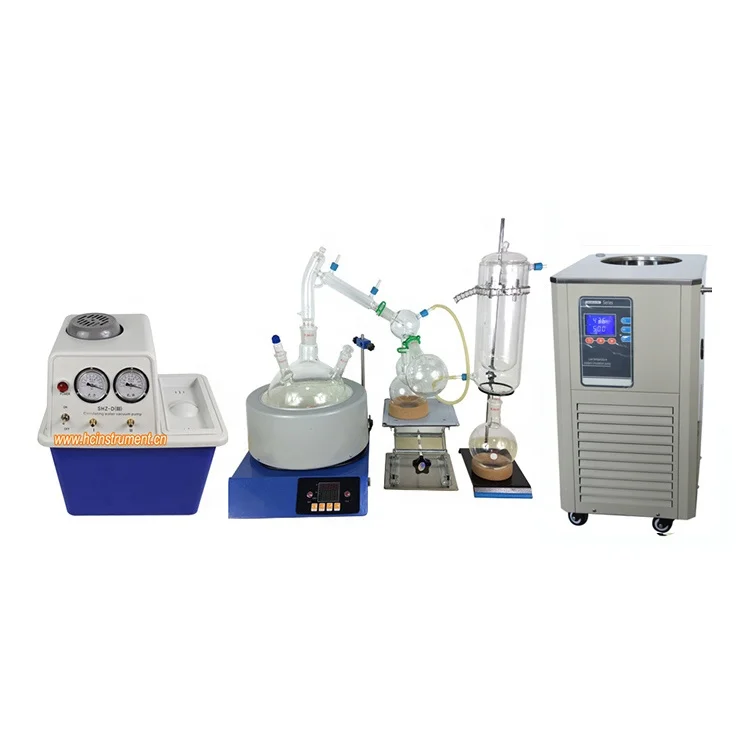

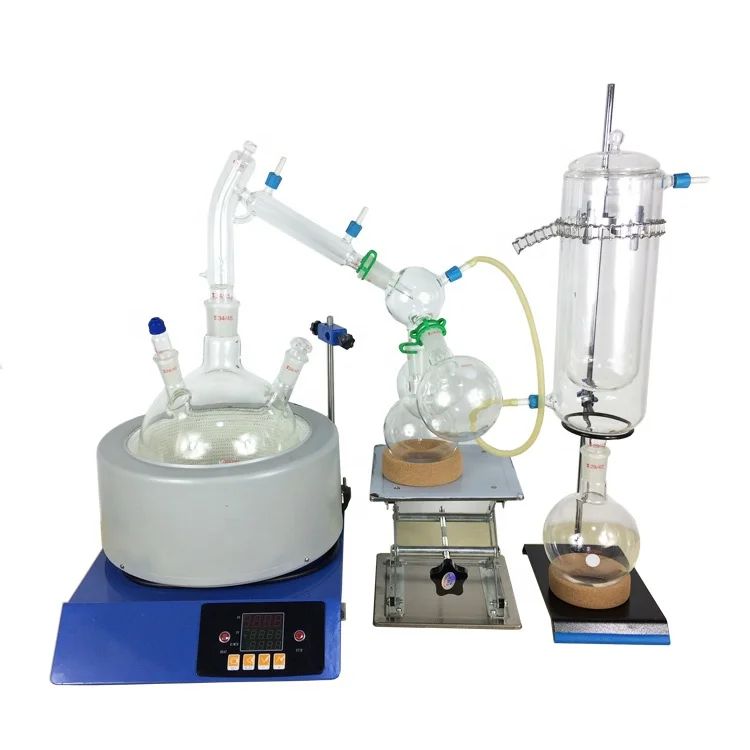

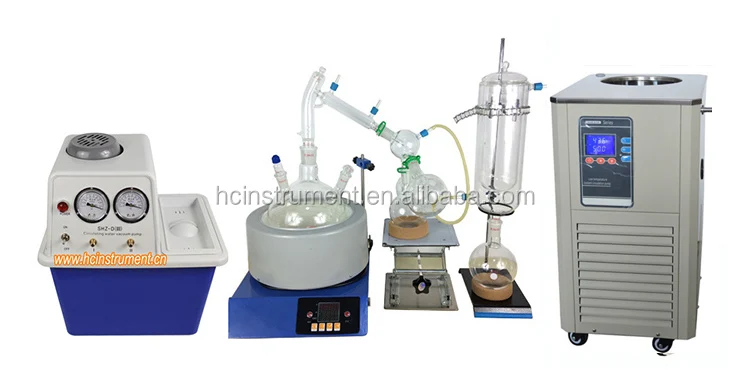

Short Path Distillation set including 5L heating mantle with stirring ,5L 3necks Flask with distillation condenser with receiving flask and cold trap set. The chiller with heating function, heating mantle and vacuup pump is optional.
Instrument Features
1. High quality and heavy duty Borosilicate 3.3 glass for durability
2. Vacuum-jacketed distillation adapter, with 4 Vigreux stages.
3.5L heating mantle with magnetic stirring function, available in 110V or 220V.
4. Detachable plastic 3/8” (10 mm) hose barbs for maximized safety during operation.
5.Carefully designed 3-way cow adapter accommodates up to 3 pcs of 500mL flasks.
6. Cold trap protects the vacuum pump from contamination and damage of vapors.

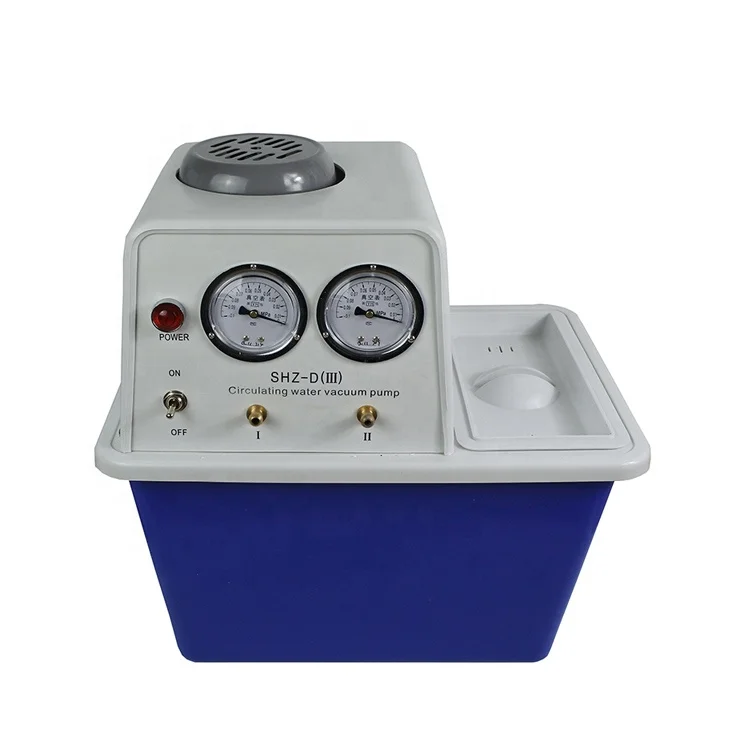

7. Flexible choice of vacuum pump.
8.Flexible choice of desktop high efficiency heater/chillers.
|
Part Description |
Quantity |
Part Description |
Quantity |
|
34/45 5000ml, 3-neck Round Bottom Flask |
1 |
GL-14 Connectors |
5 |
|
Fractional Distillation Head with Vacuum Port |
1 |
#24 Plastic Clips |
6 |
|
24/40 Thermometer Adapter |
1 |
5000ml Heating Mantel |
1 |
|
24/40 1000ml Receiving Flask |
1 |
29/42Cold Trap |
1 |
|
24/40 500ml Distillation Cow Receiver |
3 |
14/20 Thermometer Adapter |
1 |
|
24/40 500ml Round Bottom Flask |
1 |
White Bosshead 16mm |
1 |
|
Cast Iron Stand 250*160mm |
1 |
Iron Ring Paint 100mm |
1 |
|
Chain Clamp Clamping diameter 40-145mm |
1 |
1000-3000ml Cork Ring |
1 |
|
Lab Stand 304stainless steel lifting platform 200*200mm |
1 |
500ml Cork Ring |
3 |

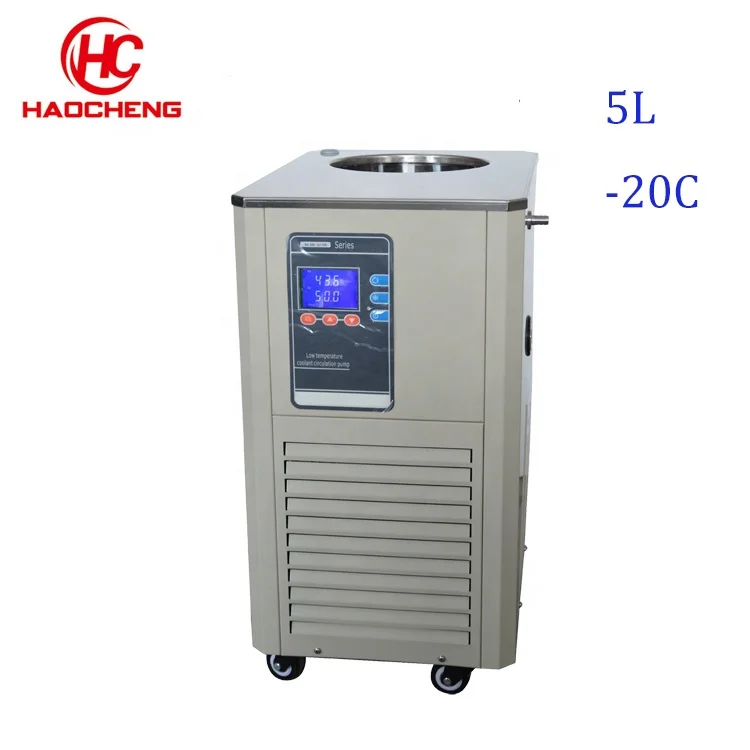

5L,-20C to 99C 230V or 110V water recirculating pump
1.Temperature setting and digital display
2.The fully closed mixer ,guarantee the stability magnetic stir.
3.Compressor: Imported from EMBRACO COMPRESSORS with high efficiency ,robustness and low noise
4.Ternary compound cascade refrigeration
5.high and low pressure control
6.The Refrigerant R134 , R290, R404A
7.Self-developand design controller ,the microcomputer controller,owing delay protection function
8 .Use the balance of heat to cold reactions, so that the temperature accuracy of ± 2 °C
9 .Shell material : cold-rolled plate , electrostatic spray.
|
Type |
SHZ-111 |
|
Power(W) |
180 |
|
Power supply(V/HZ) |
220V +/- 10%,or 110V +/- 10% |
|
Flow(L/min) |
60 |
|
Lift(M) |
8 |
|
Material |
corrosion-resistant |
|
Maximum vacuum(Mpa) |
0.098 |
|
Single-head exhaust volume (L/min) |
10 |
|
Taps |
2 |
|
Volume (L) |
15 |
|
Size (mm) |
400x 280 x420 |
|
Weight (Kg) |
18 |
Additional information
| application |
Distillation ,Food Processing ,Desalinization |
|---|---|
| model number |
HSPD-5 |
