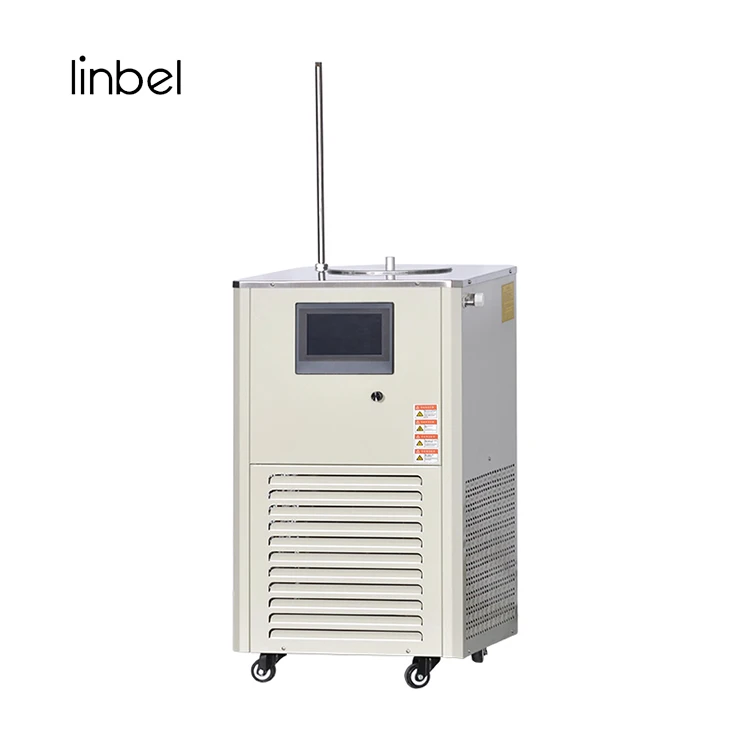

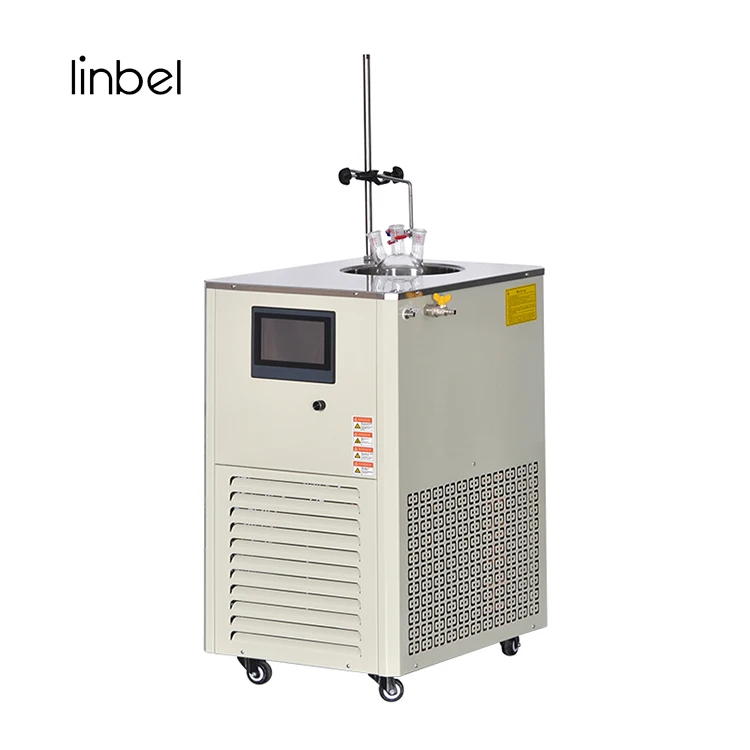

Laboratory Intelligent Temperature Digital Display Water Bath Lab Equipment

Model

DFY-5/30

DFY-10/30

DFY-20/30

Technical data

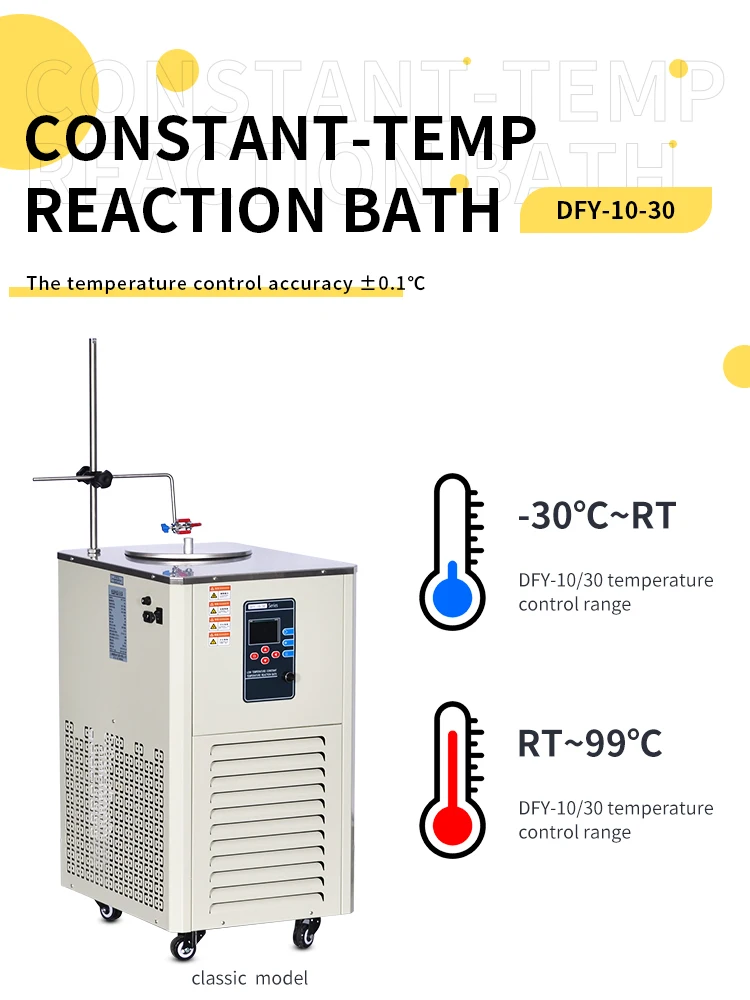

Temperature range

-30~99℃;±0.1℃

Voltage(V)

220V/50Hz,220V/60Hz

Phase(P)

1

Heating power(Kw)

1

2

3

Power(Kw)

1.75

3

4.5

Cooling capacity(w)

RT

875

2010

2800

0℃

650

1650

2300

-30℃

255

400

600

Temperature sensor

PT100

Protection

Overvoltage, time delay, overcurrent, overheating, leakage, protector

Tank volume(L)

5

10

20

Tank size(mm)

180*180

300*200

350*250

Opening size(mm)

180

240

320

Max flask volume(L)

2

5

10

Compressor

Type

Rotor compressor

Brand

Secop

Tecumseh

Power(kW)

0.75

1.125

2.25

Current(A)

3.4

5

10

Horsepower

1

1½

3

Quantity

1

Refrigerant

R404A

Circulating pump

Power(W)

100

Current(A)

0.5

Rated head(m)

6

Rated flow(L/min)

10

Size

L*W*H(mm)

477*344*683

540*424*776

590*478*840

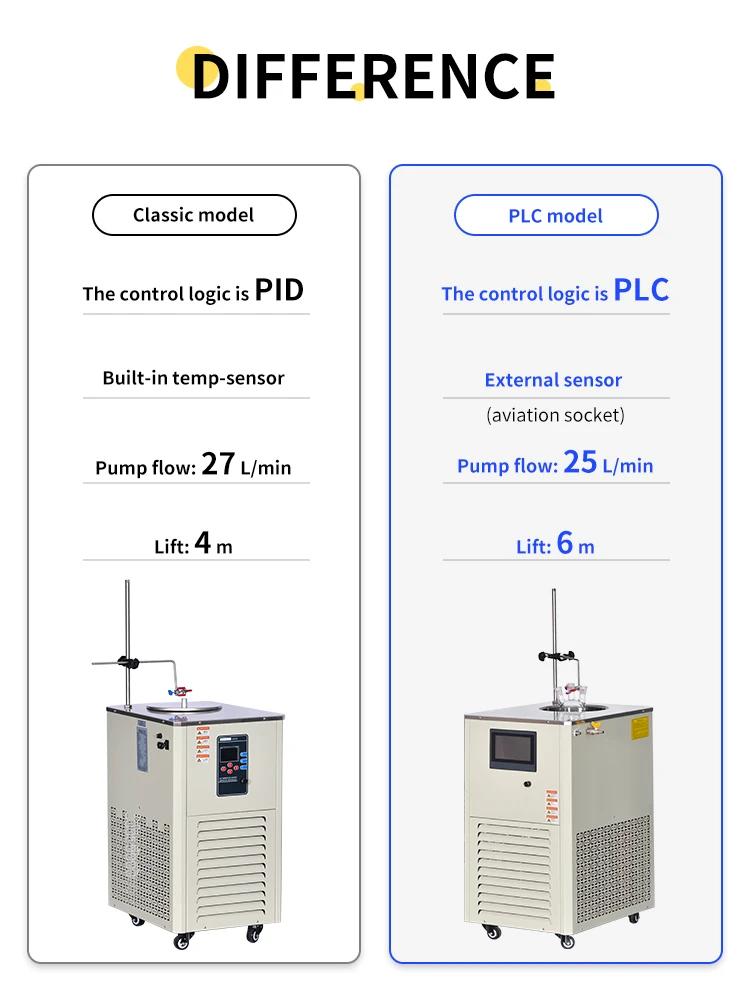

*PLC

Control system

Siemens S7-200 smart PLC

Programming

5 programs can be written, each with up to 40 steps

Control model

Material temperature and equipment outlet temperature can be switched automatically

Protocol

Modbus RTU protocol RS485 interface (optional RS232 Ethernet)

Control panel

7-inch Siemens color touch screen (optional 10 inch)

Data export

Support USB flash disk data export, and export temperature data in TXT format

Packing list

1 gas valve,1 PTFE tape,1 vertical pole,1 cross shaped frame

2 silicone tape insulation hoses

Operation instructions

All data are measured in the factory, and users will have errors in the process of use

*PLC for optional PLC part data, it is not applicable if there is no PLC
