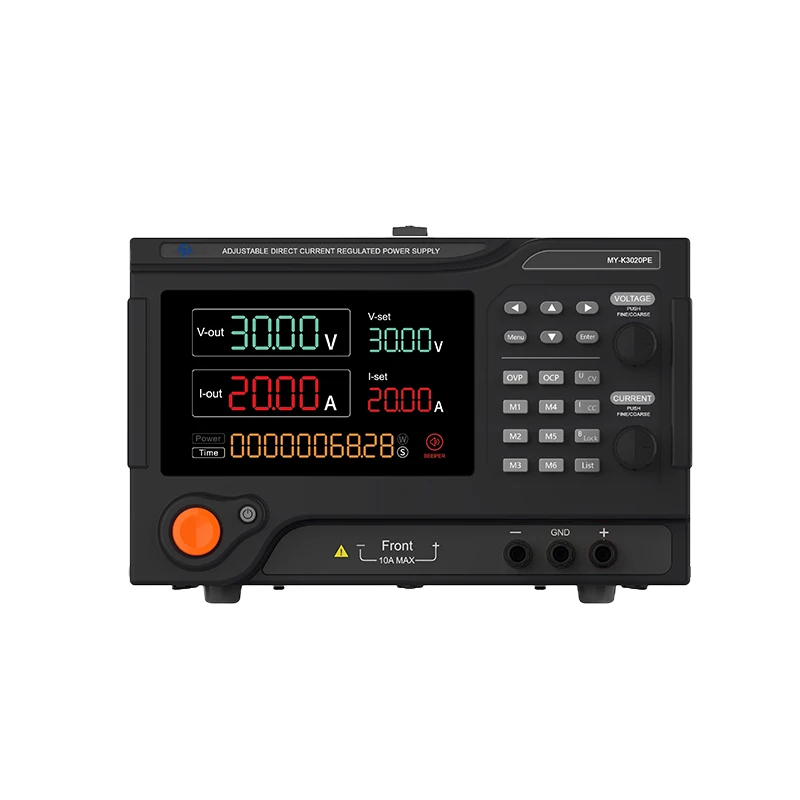

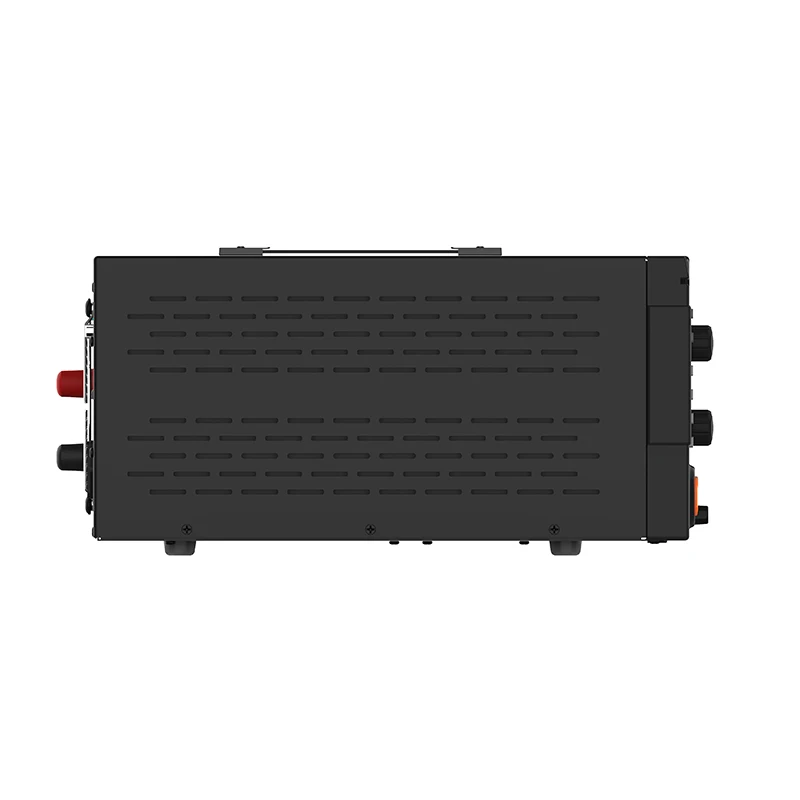

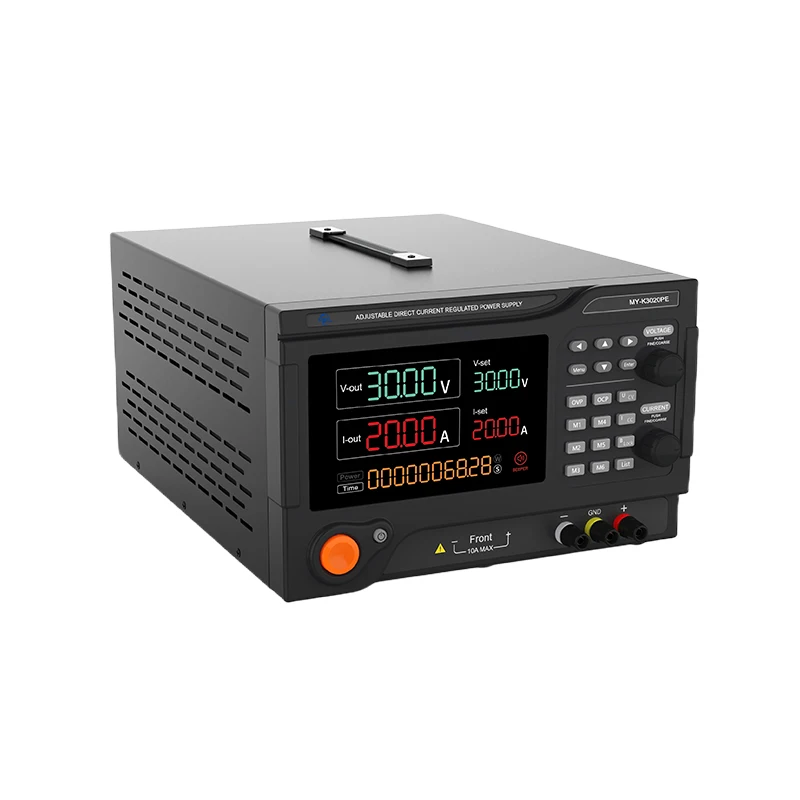

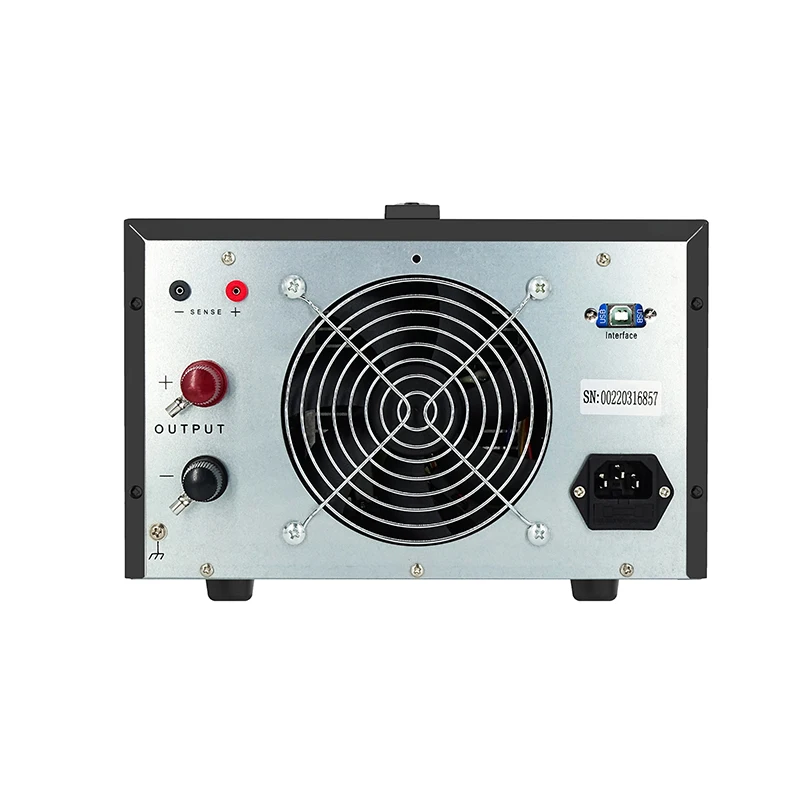

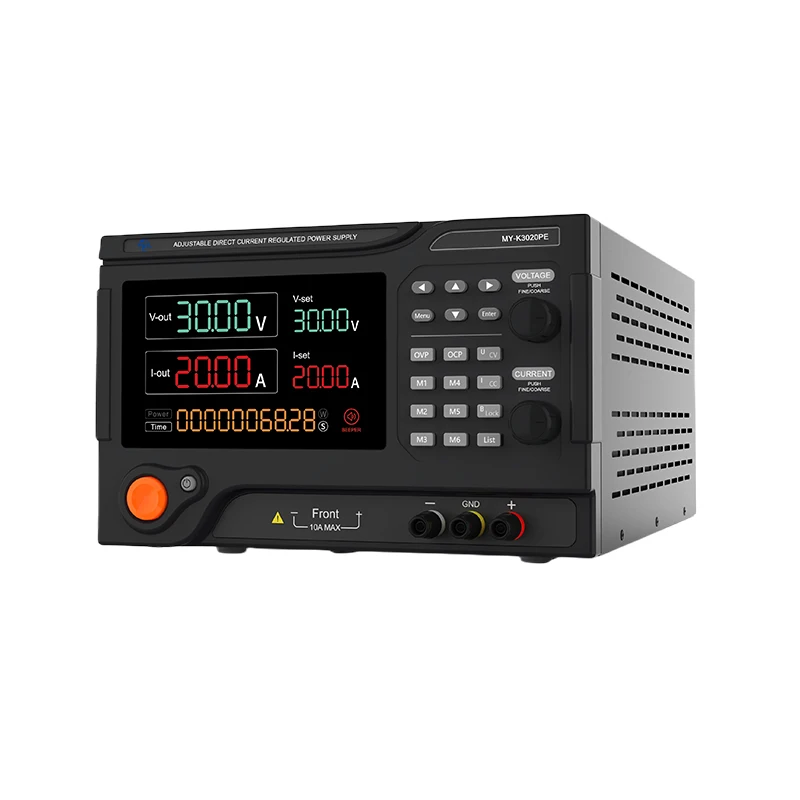

MYAMI MY-K10005PE 100V 5A 500W Black DC Regulated Power Supply for Lab Programmable Workshop Equipment

Name: MYAMI MY-K10005PE 100V 5A 500W Black DC Regulated Power Supply for Lab Programmable Workshop Equipment
SKU: 7299935011746
Availability: InStock

$604.03

Output Power

Clear

Compare

Add to wishlist

Guaranteed Safe Checkout

Features & Compatibility

MYAMI MY-K10005PE 100V 5A 500W Black DC Regulated Power Supply for Lab Programmable Workshop Equipment

0-100V/0-5A variable/500W
4LED digital

Application:
(1) Aerospace Testing

(2) Photovoltaic and energy storage system
(3) New energy vehicle
(4) Data center
(5) Industrial motor
(6) Power semiconductor module
(7) Automated test system (ATE)
(8) Lithium fuel cell
(9) Aging of electronic equipment
(10) Precision electroplating, splashing and surface treatment

Feature:

(1) RS485 serial port is standard;
(2) SENSE serial port is standard;
(3) MUDBUS communication protocol;

(4) The set value and the actual value are displayed in the same frame and can be compared；

(5) The maximum timing is 11 days；

(6) Single timing up to 12 hours；

Specification

Rated DC output (0℃~ 40℃)
Voltage	0-100V
Current	0-5 A
Voltage stability	≤±(0.2%+0.05V)
Current stability	≤±(0.5%+0.05A)
Load stability	≤0.5%
Ripple & noise	≤1%
Display resolution
Voltage resolution	10mV
Current resolution	10mA
Power resolution	1mW
Load resistance	1mR
Operating environment
Elevation	≤2000m
Relative humidity	＜80%
Environment temperature	5℃~ 40℃
Storage environment
Environment temperature	-20~ 80℃
Relative humidity	≤80%
Power input
Input	AC220V±10%,50Hz
Size
Fuselage size	330(D)×250(W)×155(H)mm
Package size	430(D)×330(W)×250(H)mm
Weight	5.5Kg

Model	Voltage	Current	Display	Accuracy
MY-K1560PE	0-15V	0-60A	4 LED	≤±(0.2%+0.05V)
MY-K15100PE	0-15V	0-100A	4 LED	≤±(0.2%+0.05V)
MY-K2050PE	0-20V	0-50A	4 LED	≤±(0.2%+0.05V)
MY-K3020PE	0-30V	0-20A	4 LED	≤±(0.2%+0.05V)
MY-K3030PE	0-30V	0-30A	4 LED	≤±(0.2%+0.05V)
MY-K3050PE	0-30V	0-50A	4 LED	≤±(0.2%+0.05V)
MY-K3060PE	0-30V	0-60A	4 LED	≤±(0.2%+0.05V)
MY-K3080PE	0-30V	0-80A	4 LED	≤±(0.2%+0.05V)
MY-K30100PE	0-30V	0-100A	4 LED	≤±(0.2%+0.05V)
MY-K30150PE	0-30V	0-150A	4 LED	≤±(0.2%+0.05V)
MY-K30200PE	0-30V	0-200A	4 LED	≤±(0.2%+0.05V)
MY-K5020PE	0-50V	0-20A	4 LED	≤±(0.2%+0.05V)
MY-K5030PE	0-50V	0-30A	4 LED	≤±(0.2%+0.05V)
MY-K5050PE	0-50V	0-50A	4 LED	≤±(0.2%+0.05V)
MY-K5060PE	0-50V	0-60A	4 LED	≤±(0.2%+0.05V)
MY-K6010PE	0-60V	0-10A	4 LED	≤±(0.2%+0.05V)
MY-K6015PE	0-60V	0-15A	4 LED	≤±(0.2%+0.05V)
MY-K6020PE	0-60V	0-20A	4 LED	≤±(0.2%+0.05V)
MY-K6030PE	0-60V	0-30A	4 LED	≤±(0.2%+0.05V)
MY-K6050PE	0-60V	0-50A	4 LED	≤±(0.2%+0.05V)
MY-K6060PE	0-60V	0-60A	4 LED	≤±(0.2%+0.05V)
MY-K8030PE	0-80V	0-30A	4 LED	≤±(0.2%+0.05V)
MY-K10005PE	0-100V	0-5A	4 LED	≤±(0.2%+0.05V)
MY-K10010PE	0-100V	0-10A	4 LED	≤±(0.2%+0.05V)
MY-K10020PE	0-100V	0-20A	4 LED	≤±(0.2%+0.05V)
MY-K10030PE	0-100V	0-30A	4 LED	≤±(0.2%+0.05V)
MY-K12010PE	0-120V	0-10A	4 LED	≤±(0.2%+0.05V)
MY-K12020PE	0-120V	0-20A	4 LED	≤±(0.2%+0.05V)
MY-K12030PE	0-120V	0-30A	4 LED	≤±(0.2%+0.05V)
MY-K15005PE	0-150V	0-5A	4 LED	≤±(0.2%+0.05V)
MY-K15010PE	0-150V	0-10A	4 LED	≤±(0.2%+0.05V)
MY-K20002PE	0-200V	0-2A	4 LED	≤±(0.2%+0.05V)
MY-K20003PE	0-200V	0-3A	4 LED	≤±(0.2%+0.05V)
MY-K20005PE	0-200V	0-5A	4 LED	≤±(0.2%+0.05V)
MY-K22010PE	0-220V	0-10A	4 LED	≤±(0.2%+0.05V)
MY-K30002PE	0-300V	0-2A	4 LED	≤±(0.2%+0.05V)
MY-K30003PE	0-300V	0-3A	4 LED	≤±(0.2%+0.05V)
MY-K30005PE	0-300V	0-5A	4 LED	≤±(0.2%+0.05V)
MY-K40002PE	0-400V	0-2A	4 LED	≤±(0.2%+0.05V)
MY-K40003PE	0-400V	0-3A	4 LED	≤±(0.2%+0.05V)
MY-K40005PE	0-400V	0-5A	4 LED	≤±(0.2%+0.05V)
MY-K50002PE	0-500V	0-2A	4 LED	≤±(0.2%+0.05V)
MY-K50003PE	0-500V	0-3A	4 LED	≤±(0.2%+0.05V)
MY-K50005PE	0-500V	0-5A	4 LED	≤±(0.2%+0.05V)
MY-K60002PE	0-600V	0-2A	4 LED	≤±(0.2%+0.05V)
MY-K60003PE	0-600V	0-3A	4 LED	≤±(0.2%+0.05V)
