New Design Raman Light Spectrometer Portable /Lab Spectrometer OHSP250 Quantum Meter

Name: New Design Raman Light Spectrometer Portable /Lab Spectrometer OHSP250 Quantum Meter
SKU: 7299937011746
Availability: InStock

$1,632.00 – $2,176.00

Use

Clear

Compare

Add to wishlist

Guaranteed Safe Checkout

Features & Compatibility

Product Description

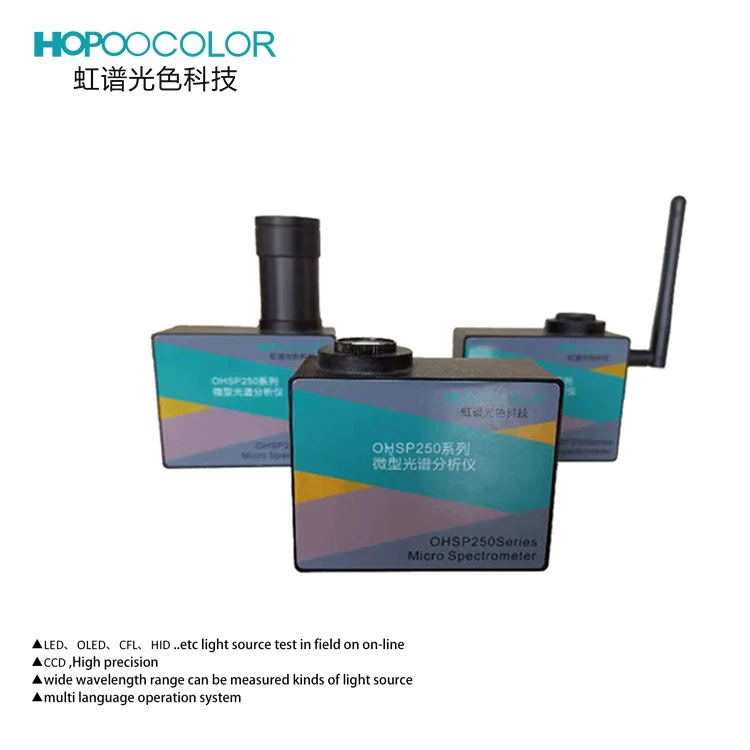

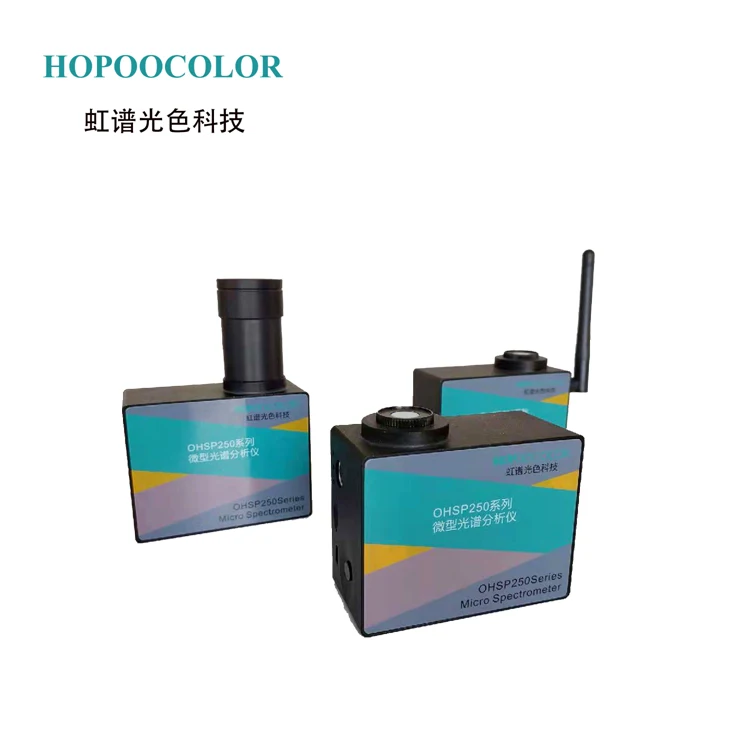

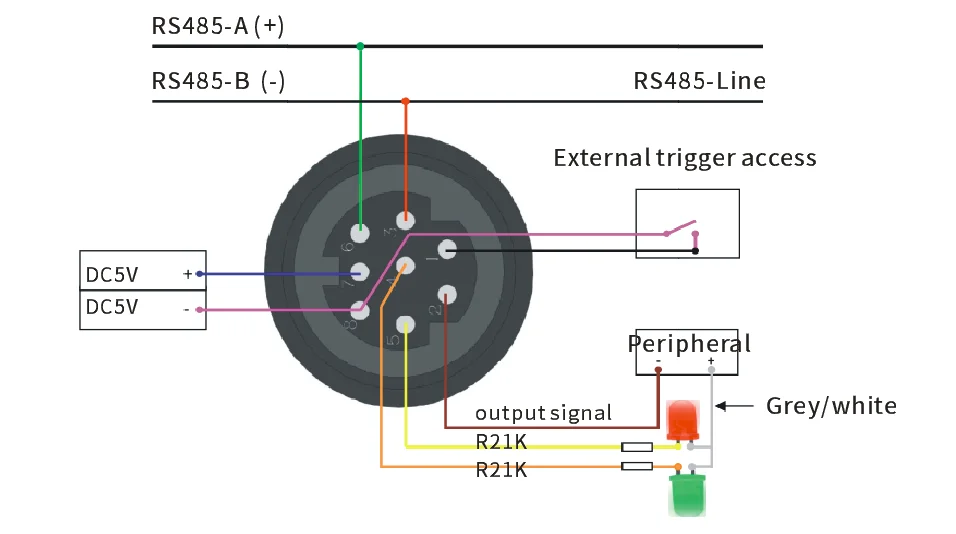

OHSP250 micro-spectrometer : The integra-tion of micro-spectrometer technology and micro-computer technology has transferred the huge measuring instrument in the laboratory to the production line, realized on-line analysis of light and color para-meters, directly output test results through RS485 or USB interface, open communication protocol, and conformed to Modbus commun-ication protocol.

Technical indiactors

Parameters	Specifications
Spectral range	350-800nm
pectral resolution	0.2nm
integration time	10us-10s
detector	TCD1304DG,3648
Standard slit	100um
Grating marking	600l/mm
Focal Length (Input)	45mm
Focal Length (Output)	65mm
transform	16bit/250ksps

Meas Parameters

Parameters	Parameters
CCT(K)	Illuminance E(lx)
Coordinate x,y	CRI Ra
Coordinate u,v	R1-15
Coordinate u’,v’	SDCM
Peak wave(nm)	Centroid wave(nm)
Half width(nm)	Irradiance Ee(W/m2)
Central wave(nm)	Duv
Purity(%)	S/P
Dominant wave(nm)	Spectral distributor

Models

Model	Functional version	Wave Range	Function Description
OHSP250		380-780nm	Base +USB interface
OHSP250P	Plant Light	350-800nm	Base+plant light parameters
OHSP250S	Flagship	350-950nm	Base+plant light+TM-30
OHSP250L	luminance	380-780nm	(cd/m2)
OHSP250I	Industry	380-780nm	IO Control, RS485
OHSP250UV	UV	230-850nm	Base+UV parameters
OHSP250SF	Full function	350-950nm	Base+plant light+TM-30+flicker+blue light
