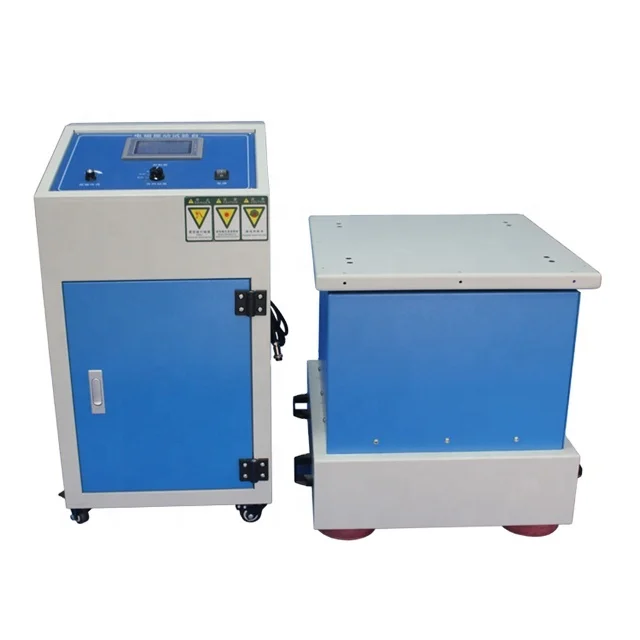

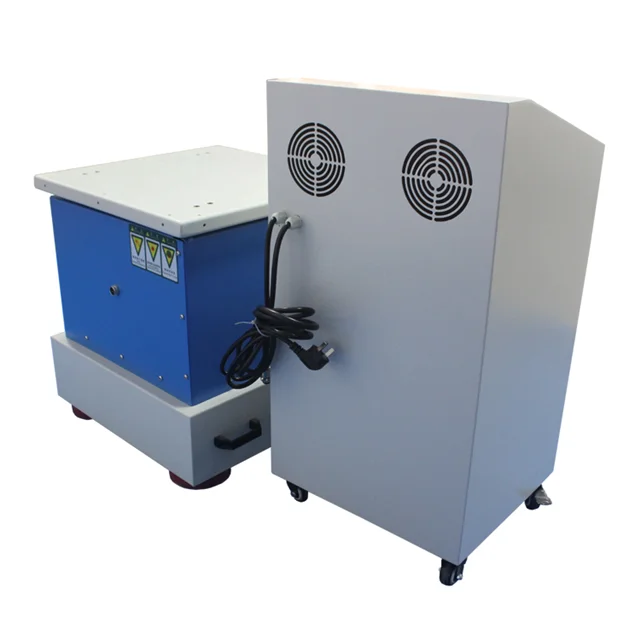

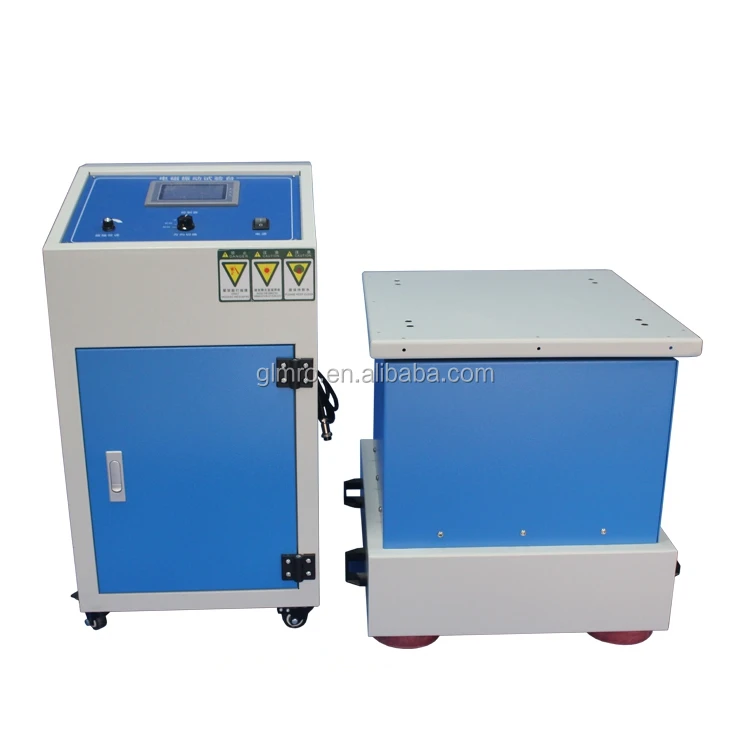

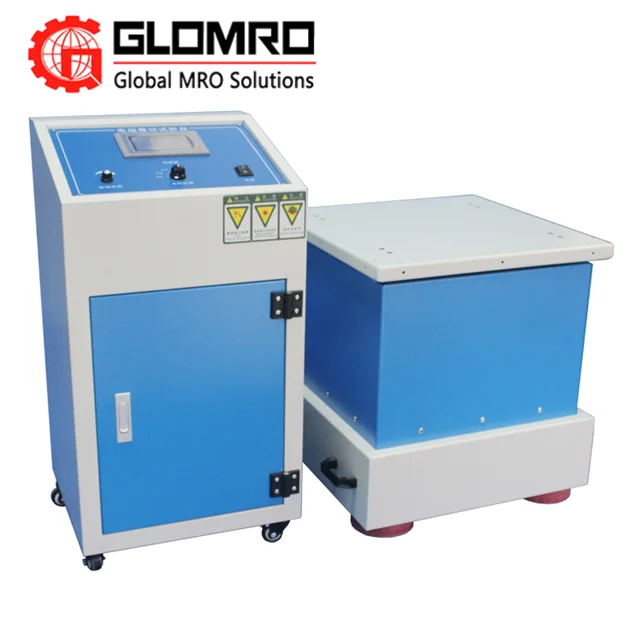

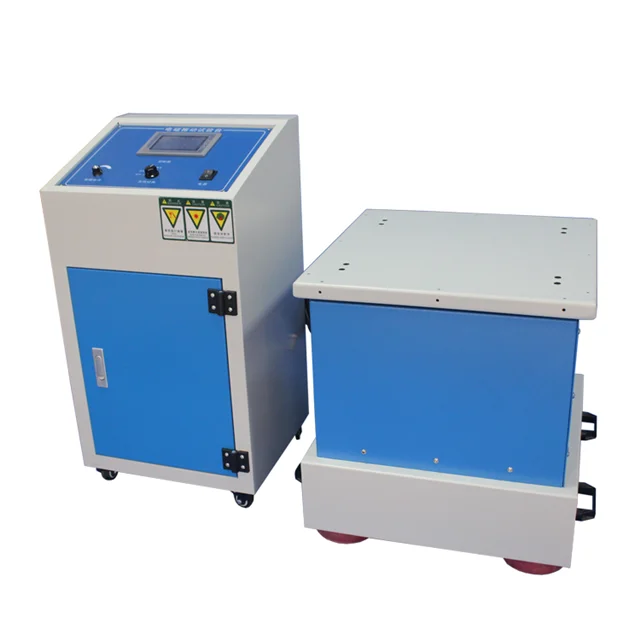

TOP1 High Frequency Electromagnetic Vibration Test Table
$6,255.99
Guaranteed Safe Checkout
Features & Compatibility
BAXIT vibration table
FUNCTIONS
1, table size (mm): 500×1000 other sizes can be customized
2. Amplitude: 0~5mm
3, the maximum load: 100kg
4, frequency:1Hz~600Hz
5, the maximum acceleration: 0 ~ 20g (1g = 9.8m/S2)
6, vibration waveform: sine wave (half-wave, full-wave)
7. Sweep function (1~600Hz): (up frequency/down frequency/time range) can be set arbitrarily to standard sweep back and forth.
8.Programmable function (1~600Hz): 1~15 segments. The time and frequency of each segment can be arbitrarily set to achieve the cycle detection function.
9, vibration direction: 1 vertical (Z axis), 2 horizontal (X, Y axis), 3 vertical + horizontal (Y, X, Z axis)
10, precision: frequency can be displayed to 0.01Hz
10, precision: frequency can be displayed to 0.01Hz
11. Shaking table power: 4.5kw
12, power supply voltage: 380V 50Hz
13, the maximum current: 10A
14, time control: any time can be set (seconds)
15, to achieve the function: sine wave, FM, frequency sweep,
programmable, maximum acceleration, amplitude modulation, time control.
programmable, maximum acceleration, amplitude modulation, time control.
16, measuring instrument (optional): if you need to read the amplitude, acceleration
|
Vibration direction
|
Single direction (vertical/horizontal)
|
|
Testing table size
|
Test table:500*500mm(other size can customized)
Test table height of vertical machine:220mm Test table height of horizontal machine:240mm |
|
Maximum load
|
100kg
|
|
Frequency range
|
1Hz~600Hz
|
|
Amplitude
|
0~5mm
|
|
Maximum acceleration
|
0~20g(1g=9.8m/S2)
|
ADVANTAGES

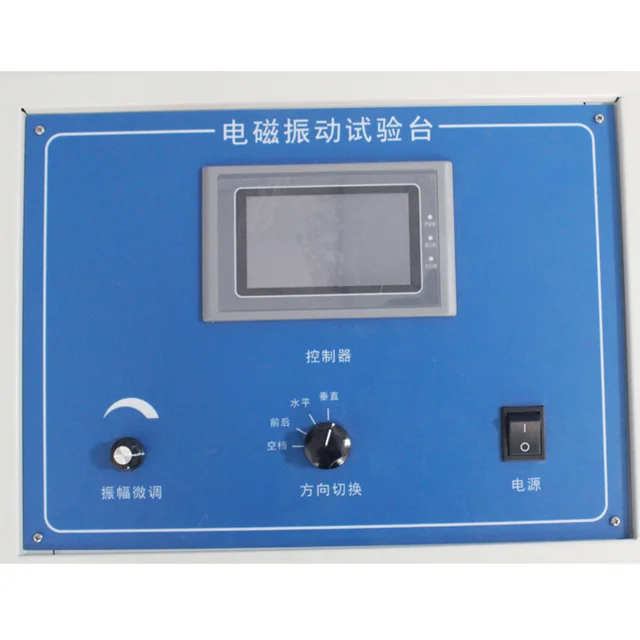

1. Using 7 inch touch screen instrument and self-designed PLC module control
2. U disk can export data, install related software can be connected to the computer control
3. Has a single point, segment, multi-segment time setting function
4. The control parameters are displayed synchronously in real time. No manual intervention
5. Accurately achieve controllable results. And can display the control curve
6. The background communication protocol can be opened according to customer requirements, and
the customer can program it on the computer (the conventional one-way vibration table does not have this function)
the customer can program it on the computer (the conventional one-way vibration table does not have this function)
7. Golden ratio laser cutting table, integrated work table The bottom of the machine is equipped with non-slip cushion rubber pad, no need to install it separately
Additional information
| Use |
Vibration Testing Machine ,Other |
|---|
